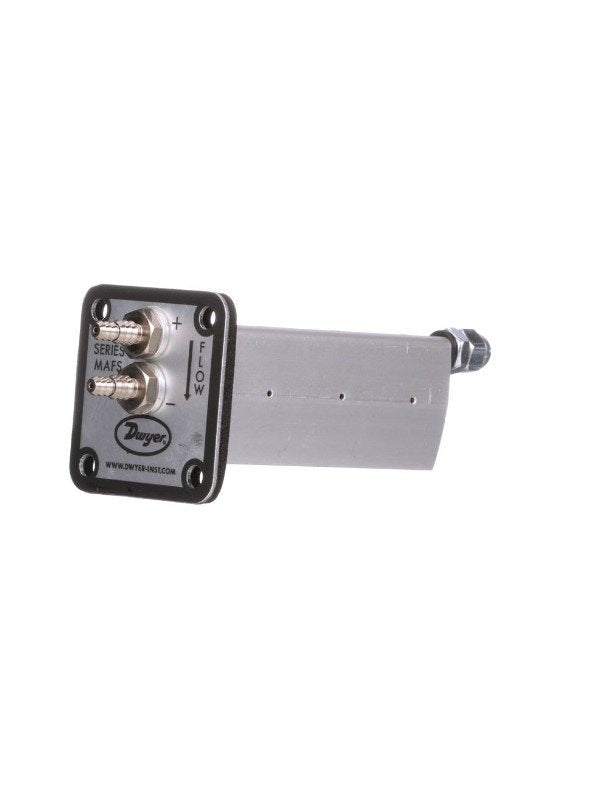

Dwyer MAFS-750MM | Metal Averaging Flow Sensor | 750 mm probe, K-factor 0.81
The MAFS-750MM from Dwyer's MAFS series is an aluminium averaging flow sensor (750 mm probe, K-factor 0.81) for measuring velocity pressure in ductwork. Equally spaced total and static pressure sensing points on the 750 mm probe make it suitable for connection to Dwyer air velocity instruments.
- Accuracy for the 750 mm probe: ±2% FS from 400 to 9000 FPM (45.7 m/s)
- Flow window of the 750 mm probe: 400 to 12,000 fpm (2 to 60.91 m/s)
- Connects to 3/16" or 1/4" ID tubing through the MAFS-750MM dual barb
- Rated to 400°F (204°C) with AA6063 aluminium wetted parts on the MAFS-750MM (gasket -31 to 230°F / -35 to 110°C)
- MAFS-750MM meets the technical requirements of EU RoHS II (2011/65/EU)
- Specifications
- Features
- Downloads
| Part Number | MAFS-750MM |
| Brand | Dwyer |
| Product Type | Metal averaging flow sensor |
| Process Connection | Dual barb for 3/16" or 1/4" ID tubing |
| Probe Length | 750 mm (29.5 in) |
| K-Factor | 0.81 |
| Accuracy | ±2% FS (400 to 9000 FPM) |
| Design Flow | 400 to 12,000 fpm (2 to 60.91 m/s) |
| Wetted Material | Aluminum AA6063 |
| Gasket Temperature | -31 to 230 °F (-35 to 110 °C) |
| Approvals | RoHS II (EU Directive 2011/65/EU) |
| Maximum Temperature | 400 °F (204 °C) |
- The design of the blade minimizes airstream disturbance.
- Aluminum structure that is lightweight.
- Square or rectangular ducts with flange mount.
