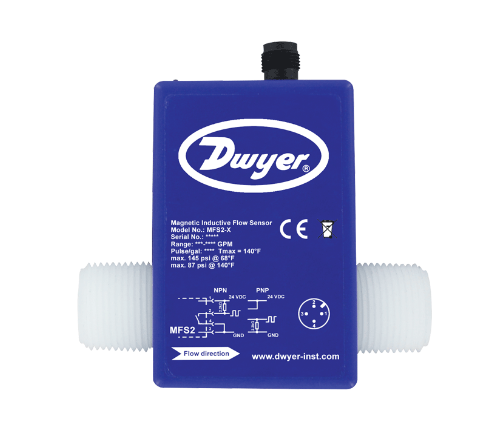

Dwyer MFS2-5 | Magnetic Inductive Flow Sensor | 2.6 to 52.8 GPM, 1" male NPT
Part Number : MFS2-5
Covering 2.6 to 52.8 GPM (10 to 200 LPM), the Dwyer MFS2-5 magnetic inductive flow sensor fits into pipework through a 1" male NPT connection. Outputs on the MFS2-5 are square-wave frequency (NPN or PNP) and 4-20 mA analog, responding in under 100 ms.
- MFS2-5 accuracy ±1% of reading with 1% repeatability
- 316 SS electrodes and PVDF process connections on the MFS2-5
- MFS2-5 pressure rating 145 psi (10 bar) at 68°F (20°C), 87 psi (6 bar) at 140°F (60°C)
- Process temperature 14 to 140°F (-10 to 60°C); minimum medium conductivity 50 µS/cm for the MFS2-5
- MFS2-5 power 24 VDC ±10%, M12x1 plug, NEMA 4 (IP65), weight 8 oz (226.8 g)
