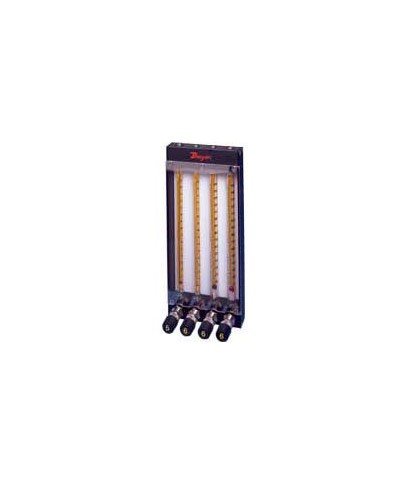

Dwyer MTF-1121 | Multitube Flowmeter Frame | 150 mm, 2 Tubes, Isolated Pattern, Aluminium Wetted

Name: Dwyer MTF-1121 | Multitube Flowmeter Frame | 150 mm, 2 Tubes, Isolated Pattern, Aluminium Wetted
Brand: Dwyer
SKU: MTF-1121
Availability: InStock

Part Number : MTF-1121

Dwyer MTF-1121: 150 mm multitube flowmeter frame holding 2 tubes in an isolated flow pattern, with aluminium wetted parts. Series MTF frames such as the MTF-1121 let flow tubes of different capacity work side by side for metering, mixing or monitoring.

150 mm frame taking 2 tubes
Isolated flow pattern across 2 channels, 150 mm
Buna-N O-rings on an aluminium 150 mm frame (isolated)
Polycarbonate front shield and black anodised side panels; 150 mm, 2 tubes, aluminium
1/8" female NPT connections, vertical mounting; 2-tube aluminium 150 mm isolated frame

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	MTF-1121
Brand	Dwyer
Frame Size	150 mm
Tube Capacity	2
Flow Pattern	Isolated
Wetted Parts	Aluminium
O-rings	Buna-N
Connection	1/8" female NPT
Front Shield	Polycarbonate
Side Panels	Black anodised aluminium
Max Operating Pressure	200 psig (13.8 bar)
Max Operating Temperature	250°F (121°C)
Repeatability	±0.25% of scale reading
Mounting	Vertical

Systems can have their functionality and design altered to match the needs of a particular application.
Ability to hold up to six distinct flow tubes, offering flexibility in flow patterns and capacity to meet diverse requirements.
The exact control and monitoring of fluid flow rates is made possible by the variable flow capacities that each flow tube can have.
Perfect for multichannel uses including mixing, metering, or monitoring; offers a complete solution for intricate fluid handling procedures.
Has a modular architecture that facilitates simple assembly and reconfiguration of the system in response to shifting needs or preferences.
Ideal for a variety of uses necessitating specialized flow systems, such as research applications, laboratory tests, and industrial operations.
Built with sturdy materials to guarantee lifespan and dependability under varied working circumstances.
