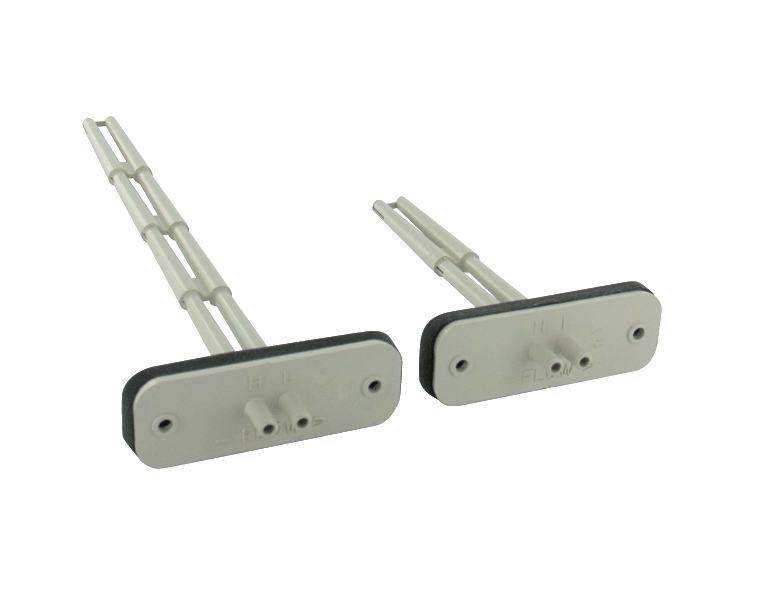

Dwyer PAFS-1009 | Averaging Flow Sensor | 19-13/32" (49.29 cm) insertion
Part Number : PAFS-1009
With a 19-13/32" (49.29 cm) insertion length, the Dwyer PAFS-1009 averaging flow sensor measures velocity pressure in the inlet section of variable air volume and fan terminal units. Beyond terminal units, the PAFS-1009 can detect differential pressure at various locations in main or branch ducts.
- PAFS-1009 insertion length: 19-13/32" (49.29 cm)
- Polycarbonate construction; wetted parts ABS/polycarbonate (UL94-5V) on the PAFS-1009
- Mounts via an integral flange with gasket; PAFS-1009 connects to 1/4" (6 mm) ID, 3/8" (10 mm) OD tubing
- PAFS-1009 operating temperature 40 to 120°F (4 to 49°C), storage -40 to 140°F (-40 to 60°C)
- Weight 1 oz (28 g); PAFS-1009 meets EU RoHS II (2011/65/EU) technical requirements
