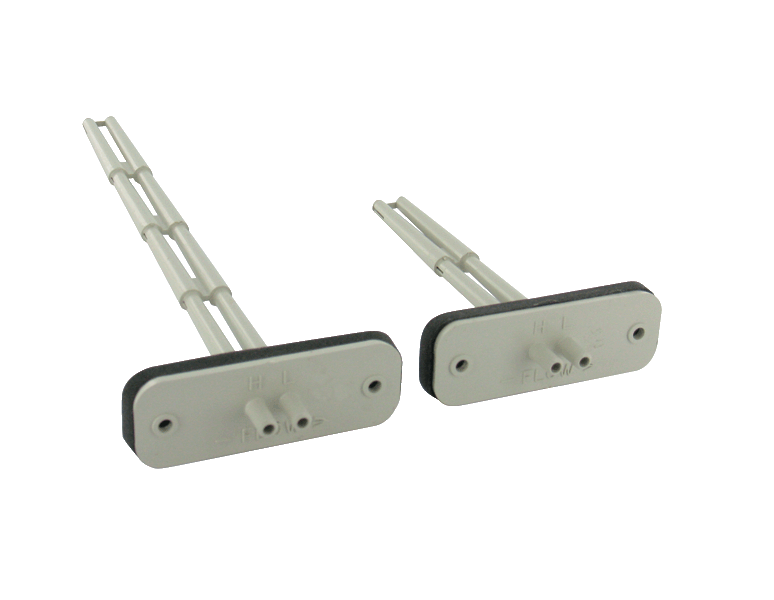

Dwyer PAFS-1011 | Averaging Flow Sensor | 23-29/32" (60.72 cm) insertion
Part Number : PAFS-1011
Dwyer PAFS-1011 is an averaging flow sensor with an insertion length of 23-29/32" (60.72 cm), made for measuring velocity pressure at the inlet of VAV and fan terminal units. The PAFS-1011 can also sense differential pressure at points in main or branch duct runs.
- PAFS-1011 insertion length: 23-29/32" (60.72 cm)
- Polycarbonate construction; wetted parts ABS/polycarbonate (UL94-5V) on the PAFS-1011
- Mounts via an integral flange with gasket; PAFS-1011 connects to 1/4" (6 mm) ID, 3/8" (10 mm) OD tubing
- PAFS-1011 operating temperature 40 to 120°F (4 to 49°C), storage -40 to 140°F (-40 to 60°C)
- Weight 1 oz (28 g); PAFS-1011 meets EU RoHS II (2011/65/EU) technical requirements
