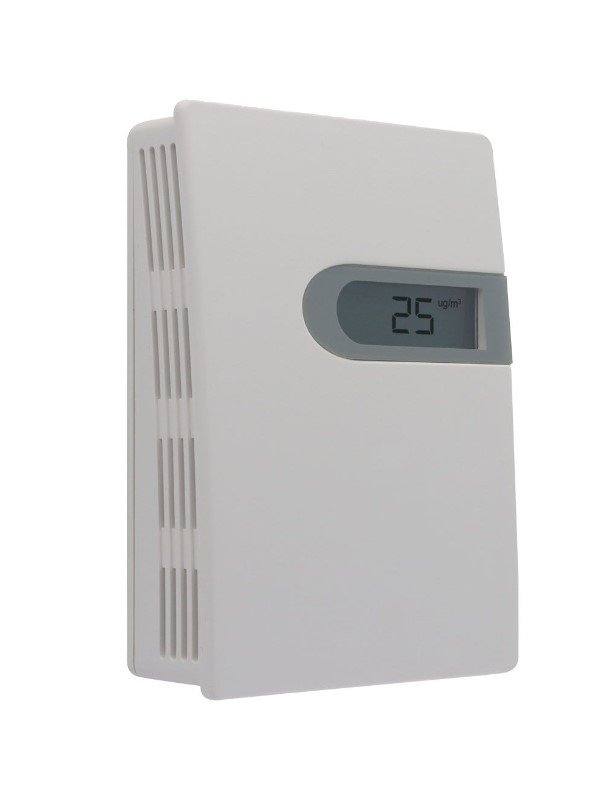

Dwyer Instruments PMI-10WA-N-N | Particulate transmitter | PM 10 wall mount | 4-20 mA | 0-10V
By identifying particulate matter in an office setting or HVAC duct, the Series PMI, Model PMI-10WA-N-N Particulate Matter Transmitter is intended to measure indoor air quality. The Series PMI, which measures particles as fine as 0.3 µm using laser scattering technology, is a crucial aspect of any indoor air quality monitoring system. The Series PMI may function as a stand-alone controller thanks to the optional relay, settable alarm, and control settings.
- Specifications
- Features
- Downloads
| Accuracy | +/-10 µg/m3 @ 0-100 µg/m3 +/-10% reading @ 100-600 µg/m3 @ 25°C, 50% RH |
| Approvals | CE, UKCA |
| Display | Optional 4-digit LCD |
| Enclosure Rating | Wall mount: IP30 Duct mount: IP65 (housing), IP30 (probe) |
| Housing Material | Wall mount: Polycarbonate (UL 94 V-0) Duct mount: ABS and polycarbonate (UL 94 V-0) |
| Humidity | Limit: 0-95% RH (non-condensing) |
| Manufacturer | Dwyer Instruments |
| Maximum operating temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -22 to 158°F (-30 to 70°C) |
| Operating Life | MTBF more than 3 years in continuous service mode, service life up to 8-10 years in auto (intermittent) service mode |
| Output Load Resistance | Current output: ¢°¤500 ¢ž¦ Voltage output: ¢°¥2 k¢ž¦ |
| Output | Current: 4-20 mA Voltage: 0-10 VDC Relay: SPST 3A, 30 VDC/250 VAC RS-485/Modbus® (RTU) |
| Power | 16-28 VAC/6-35 VDC |
| Range | PMI-2.5: 0-500 µg/m3, particle size 0.3-2.5 µm PMI-10: 0-600 µg/m3, particle size 0.3-10 µm |
| Resolution | 1 µg/m3 |
| Response Time | <10 s, continuous service mode |
| Sensor Type | Laser scattering |
| Type | Particulate Matter Transmitter |
| Weight | Wall mount: 7.05 oz (200 g) Duct mount: 9.5 oz (270 g) |
- Provides long-term stability and precision while maintaining a healthy air supply.
- There are wall mount and duct mount versions of particulate matter application independent devices available.
- Ten years of service life in auto mode with minimal maintenance.
- Less downtime thanks to the overvoltage safeguard.
- Simple setup with buttons and an optional integrated display.
- Utilizing the detachable terminal block on the duct mount model saves time.
- Controller in a single unit with optional relay, control modes, and alarm.
