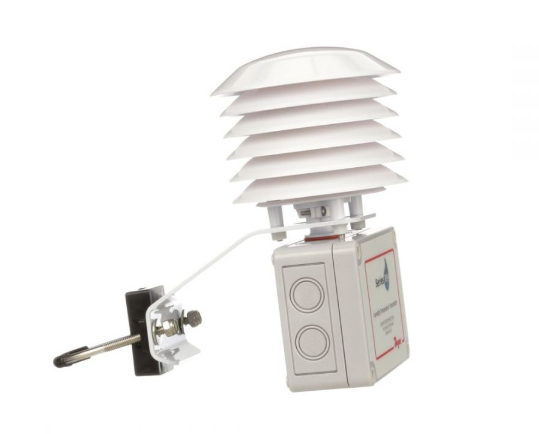

Dwyer RHP-2O1E | OSA Humidity/Temperature Transmitter | ±2% RH, 4-20 mA RH, Pt1000 RTD
Part Number : RHP-2O1E
The Dwyer RHP-2O1E gives a 4-20 mA humidity output plus a passive Pt1000 RTD temperature output from an outside air (OSA)-mount housing, with humidity accuracy of ±2% (10 to 90% RH @ 25°C). This Series RHP model, RHP-2O1E, senses humidity with a capacitance polymer element.
- Supply for the 4-20 mA version: 10-35 VDC (loop powered) on the RHP-2O1E
- Pt1000 RTD temperature sensor: DIN Class B, ±0.3°C @ 0°C (±0.54°F @ 32°F) (RHP-2O1E)
- RHP-2O1E: Measures 0 to 100% RH; drift below 1% RH per year, hysteresis ±1%, response time 15 s
- OSA housing: polycarbonate, NEMA 4X (IP66), 1/2" (22.3 mm) conduit connection, 1 lb (0.45 kg) on the RHP-2O1E
- Operating range -40 to 140°F (-40 to 60°C) (RHP-2O1E)
