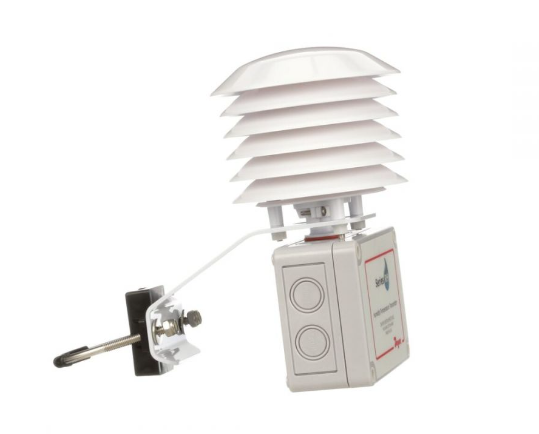

Dwyer RHP-2O1F | OSA Humidity/Temperature Transmitter | ±2% RH, 4-20 mA RH, 20K NTC
Part Number : RHP-2O1F
Dwyer RHP-2O1F is an outside air (OSA)-mount transmitter rated ±2% (10 to 90% RH @ 25°C), providing a 4-20 mA humidity output plus a passive 20K NTC thermistor temperature output. A capacitance polymer sensor handles humidity measurement in the Series RHP RHP-2O1F.
- Supply for the 4-20 mA version: 10-35 VDC (loop powered) (RHP-2O1F)
- RHP-2O1F: 20K NTC temperature sensor accuracy ±0.2°C @ 25°C (±0.36°F @ 77°F)
- Measures 0 to 100% RH; drift below 1% RH per year, hysteresis ±1%, response time 15 s on the RHP-2O1F
- OSA housing: polycarbonate, NEMA 4X (IP66), 1/2" (22.3 mm) conduit connection, 1 lb (0.45 kg) (RHP-2O1F)
- RHP-2O1F: Operating range -40 to 140°F (-40 to 60°C)
Free UAE shipping available
For pricing, please contact our experts.
