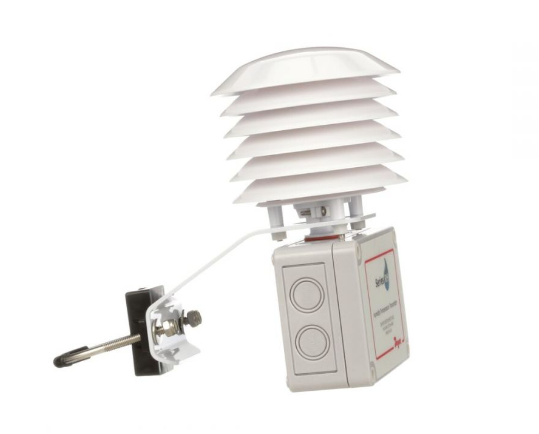

Dwyer RHP-2O2E | OSA Humidity/Temperature Transmitter | ±2% RH, 0-10 VDC RH, Pt1000 RTD
Part Number : RHP-2O2E
Built for outside air (OSA) mounting, the Dwyer RHP-2O2E measures relative humidity to ±2% (10 to 90% RH @ 25°C) and provides a 0-10 VDC humidity output plus a passive Pt1000 RTD temperature output. The RHP-2O2E belongs to Series RHP and uses a capacitance polymer humidity sensor.
- Supply for the 0-10 VDC version: 15-35 VDC or 15-29 VAC on the RHP-2O2E
- Pt1000 RTD temperature sensor: DIN Class B, ±0.3°C @ 0°C (±0.54°F @ 32°F) (RHP-2O2E)
- RHP-2O2E: Measures 0 to 100% RH; drift below 1% RH per year, hysteresis ±1%, response time 15 s
- OSA housing: polycarbonate, NEMA 4X (IP66), 1/2" (22.3 mm) conduit connection, 1 lb (0.45 kg) on the RHP-2O2E
- Operating range -40 to 140°F (-40 to 60°C) (RHP-2O2E)
