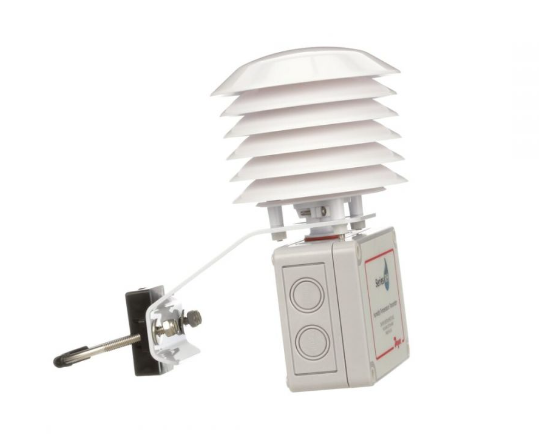

Dwyer RHP-3M11 | Sintered Filter Duct Humidity/Temperature Transmitter | ±3% RH, 4-20 mA RH/Temp
Part Number : RHP-3M11
With 4-20 mA outputs for both humidity and temperature, the Dwyer RHP-3M11 is a duct-mount unit with sintered filter measuring humidity to ±3% (20 to 80% RH @ 25°C). The RHP-3M11 belongs to Series RHP and uses a capacitance polymer humidity sensor.
- Supply for the 4-20 mA version: 10-35 VDC (loop powered) (RHP-3M11)
- RHP-3M11: Measures 0 to 100% RH; drift below 1% RH per year, hysteresis ±1%, response time 15 s
- Duct mount: NEMA 4X (IP66) housing, 1/2" NPS conduit connection, 0.616 lb (0.3 kg) on the RHP-3M11
- Operating range -40 to 140°F (-40 to 60°C) (RHP-3M11)
Free UAE shipping available
For pricing, please contact our experts.
