Dwyer Instruments RHPLC-2N22 | North American wall mount humidity/temp transmitter | 2% accuracy | 0-10VDC humidity and temperature output

Name: Dwyer Instruments RHPLC-2N22 | North American wall mount humidity/temp transmitter | 2% accuracy | 0-10VDC humidity and temperature output
Brand: Dwyer
SKU: RHPLC-2N22
Availability: OutOfStock

Part Number : RHPLC-2N22

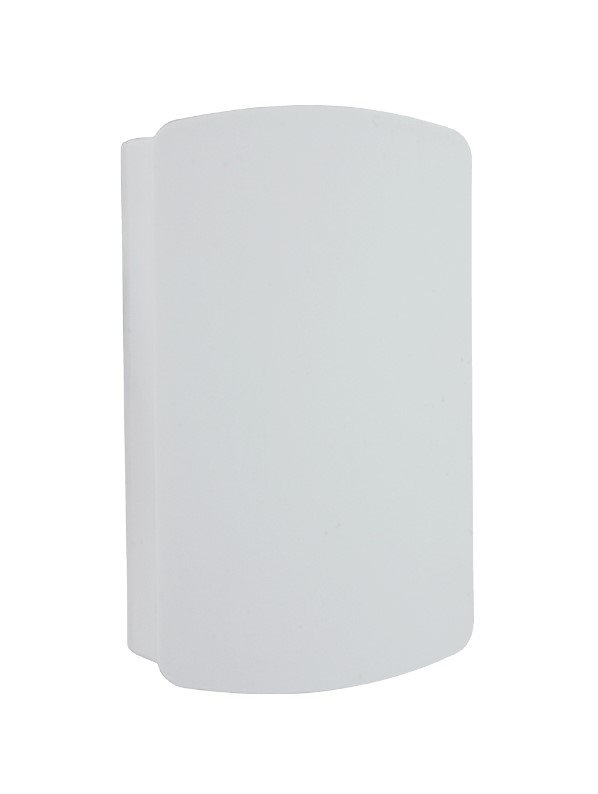

A small, affordable sensor for the building automation sector is the Wall Mount Humidity/Temperature Transmitter, Model RHPLC-2N22, Series RHPLC. To increase measurement accuracy, air flow across the sensor is provided by the attractive housing's well-ventilated design. Each unit produces a proportional analog output by means of a capacitive polymer sensing device. It is possible to configure a humidity and temperature combination model with an RTD, thermistor, voltage, or current output. This series offers a large variety of passive RTD or thermistor temperature sensors.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	Current/Volt Temp Output: +/-0.9°F @ 77°F (+/-0.5°C @ 25°C)
Accuracy	Passive Thermistor Temp Sensor Accuracy: +/-0.36oF @ 77°F (+/-0.2°C @ 25°C)
Accuracy	RH: +/-2% 10 to 90% RH @ 25°C for 2% accuracy units; +/-3% 20 to 80% RH @ 25°C for 3% accuracy units
Accuracy	RTD Temp Sensor: DIN Class B +/-0.3°C @ 0°C (+/-0.54°F @ 77°F)
Approvals	CE
Connection	Electrical: Screw terminal block
Drift	<0.25% RH/year
ENCLOSURE MATERIAL	Polycarbonate
Hysteresis	RH: +/-0.8%
Power	10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC output; 15 to 35 VDC for 0 to 10 VDC output; 10 to 29 VAC for 0 to 5 VDC output; 15 to 29 VAC for 0 to 10 VDC output
Relative Humidity	Range: 0 to 100% RH
Repeatability	RH: +/-0.1% typical
Response Time	8 s (�63)
Temp Range - Operating	-40 to 140°F (-40 to 60°C)
Temp Range - Storage	-40 to 176°F (-40 to 80°C)
Temperature Range	Output: -40 to 140°F (-40 to 60°C)
Weight	4.4 oz (125 g)

Models with 2% or 3% accuracy.
Humidity just or a combination of temperature and humidity.
Large assortment of RTD or passive thermistor temperature sensors.
