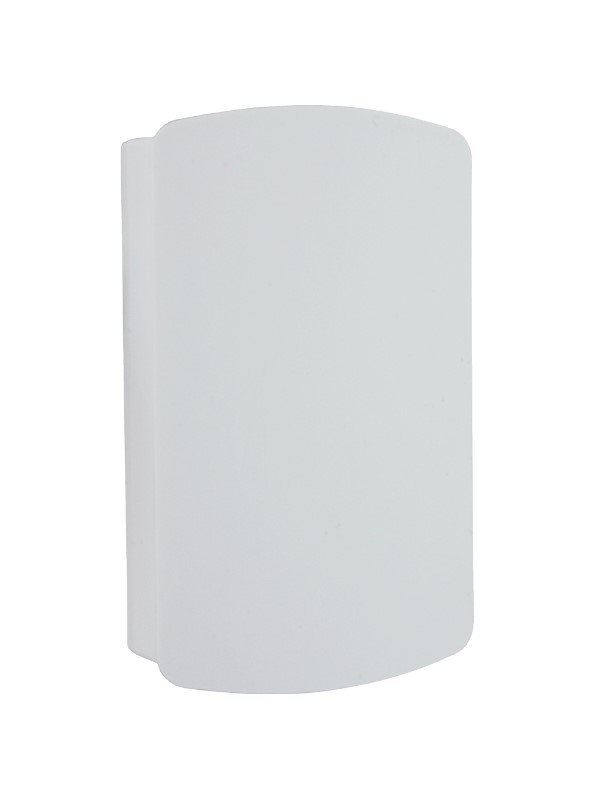

Dwyer RHPLC-3N22 | Wall Mount Humidity/Temperature Transmitter | ±3% RH, 0-10 VDC RH/Temp
Part Number : RHPLC-3N22
For building automation rooms, the Dwyer RHPLC-3N22 offers 0-10 VDC outputs for humidity and temperature on a North American wall mount, with humidity accuracy of ±3% (20 to 80% RH @ 25°C). The RHPLC-3N22 is part of Series RHPLC, with a capacitive polymer sensor in a vented housing.
- 0-10 VDC temperature output accuracy ±0.9°F @ 77°F (±0.5°C @ 25°C), range -40 to 140°F on the RHPLC-3N22
- Power for 0-10 VDC output: 15 to 35 VDC or 15 to 29 VAC (RHPLC-3N22)
- RHPLC-3N22: 0 to 100% RH range, response 8 s, drift below 0.25% RH per year, hysteresis ±0.8%
- Polycarbonate housing, 4.4 oz (125 g), screw terminal block wiring on the RHPLC-3N22
