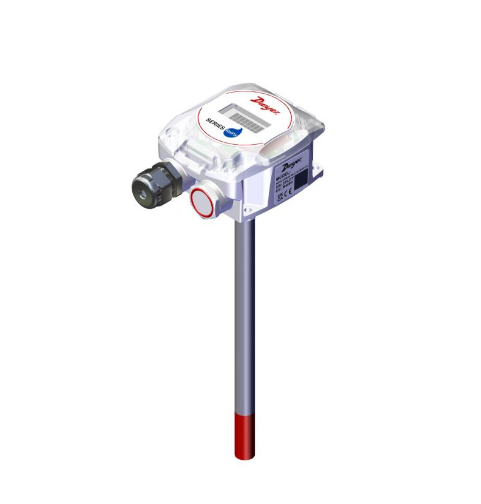

Dwyer RHPX-3SDA0-00 | Duct Humidity/Temperature Transmitter | ±3% RH, Small Enclosure, Analog
The Dwyer RHPX-3SDA0-00 pairs a ±3% (10 to 90% RH @ 25°C) capacitive polymer humidity sensor with analog outputs in a small duct housing. Typical uses for the RHPX-3SDA0-00 include commercial HVAC, data centres, clean rooms and museums.
- Operating range -40 to 60°C (-40 to 140°F), storage -40 to 70°C on the RHPX-3SDA0-00
- Humidity and temperature outputs: 4-20 mA, 0-5 V DC or 0-10 V DC at 5 mA max, field selectable (RHPX-3SDA0-00)
- RHPX-3SDA0-00: Analog power: 10 to 35 VDC for 4-20 mA; 15 to 35 VDC or 15 to 29 VAC for voltage output
- IP66 enclosure in UL 94 V-0 material; duct version weighs 198.4 g (0.44 lb) on the RHPX-3SDA0-00
- Specifications
- Features
- Downloads
| Part Number | RHPX-3SDA0-00 |
| Brand | Dwyer |
| Series | RHPX |
| Mounting | Duct, small enclosure |
| RH Accuracy | ±3% (10 to 90% RH @ 25 °C) |
| Weight | 198.4 g (0.44 lb) |
| Enclosure Rating | IP66 |
| Outputs | 4-20 mA, 0-5 V DC or 0-10 V DC, field selectable |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Humidity Range | 0 to 100% |
| Temperature Range | -40 to 60 °C (-40 to 140 °F) |
| Power (Analog) | 10-35 VDC (4-20 mA); 15-35 VDC or 15-29 VAC (voltage) |
| Resolution | 0.1% RH; 0.1 °F/°C |
- Less expensive installation thanks to several on-board sensors.
- Outdoor fences with UV protection require little upkeep.
- Installation in the plenum space is permitted due to UL 2043 compliance.
- With the detachable terminal block, fixed lid, and cable management, installation is simple.
