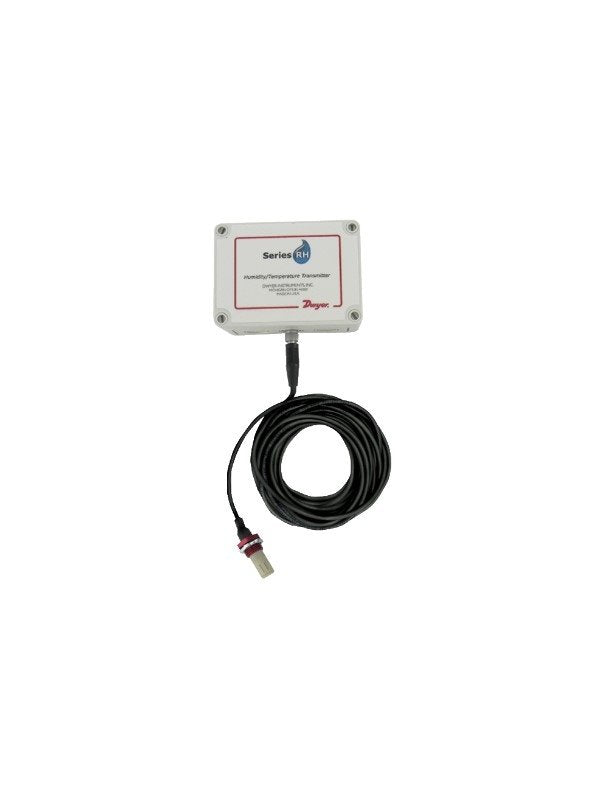

Dwyer Instruments RHT-R016 | Humidity/Temperature Transmitter | 16' cable | Current output

Name: Dwyer Instruments RHT-R016 | Humidity/Temperature Transmitter | 16' cable | Current output
Brand: Dwyer
SKU: RHT-R016
Availability: OutOfStock

Part Number : RHT-R016

For applications where space is at a premium, the Series RH-R, Model RHT-R016 Humidity Transmitter is the best choice. There is a detachable filter protecting the little sensor. Mounting distance from the waterproof base is up to 16 feet. For environmental chambers, rubber bladder rupture detection, and air handler applications, the Series RH-R is perfect.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2% @ 10 to 90%
Connection	Conduit: 1/2" NPT
Connection	Electrical: Terminal block
Connection	Process: 1/2 NPSM
Drift	Less than 1%/year
Enclosure Rating	NEMA 4X (IP66)
Housing Material	Polycarbonate, aluminum enclosure
Length	Cable: Up to 16'
Manufacturer	Dwyer Instruments
Output Signal	4 to 20 mA loop powered
Power	10 to 35 VDC
Relative Humidity	Range: 0 to 100% RH
Response Time	Less than 15 s
Sensor Type	Capacitance polymer
Storage Temperature	-40 to 176°F (-40 to 80°C)
Temperature Range	-40 to 140°F (-40 to 60°C)
Temperature Range	Compensated: -4 to 140°F (-20 to 60°C)
Temperature	Limit: -40 to 140°F (-40 to 60°C)
Type	Humidity Transmitter

4 to 16´ cable lengths are available.
Flexibility sensing is made possible by remote housing in situations where space may be constrained.
