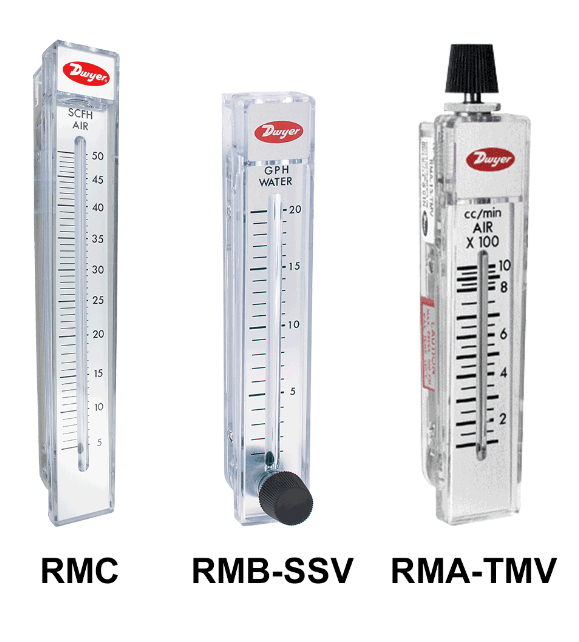

Dwyer RMA-21-TMV | Rate-Master Flowmeter | 1-10 LPM Air, 2" Scale, Top-Mounted Valve
The Dwyer RMA-21-TMV is a Rate-Master flowmeter that reads 1-10 LPM air directly on a 2" (51 mm) scale and comes with a top-mounted valve. Suited to general-purpose gas and liquid flow indication, the RMA-21-TMV can be surface or panel mounted.
- Range 1-10 LPM air on the 2" (51 mm) scale, top-mounted valve fitted
- 4% accuracy and 1/8" female NPT process connections on the RMA-21-TMV
- RMA-21-TMV rated to 100 psi (6.9 bar) and 130°F (54°C) maximum operating conditions
- Wetted parts of the RMA-21-TMV: polycarbonate body, Neoprene/Buna-N O-rings, stainless steel metal parts
- RMA-21-TMV body swaps within its 2" scale size for cleaning or a range change, leaving pipework in place
- Weighs 4 oz (113.4 g); the RMA-21-TMV meets RoHS II (EU Directive 2011/65/EU)
- Specifications
- Features
- Downloads
| Part Number | RMA-21-TMV |
| Brand | Dwyer |
| Accuracy | 4% |
| Weight | 4 oz (113.4 g) |
| Process Connection | 1/8" female NPT |
| Wetted Materials | Polycarbonate body; Neoprene and Buna-N O-rings; SS metal parts; float of SS, black glass, aluminium, K monel or tungsten carbide depending on range |
| Approvals | Meets EU Directive 2011/65/EU (RoHS II) |
| Mounting | Surface or panel |
| Max. Operating Pressure | 100 psi (6.9 bar) |
| Flow Range | 1-10 LPM air |
| Scale | 2" (51 mm) |
| Valve | Top-Mounted Valve |
| Max. Operating Temperature | 130 °F (54 °C) |
- Direct reading scales remove the need for difficult conversions.
- Because the stainless steel backbone absorbs pipe torque, installation damage and costs are reduced.
- Long operational life and a sturdy, non-breakable polycarbonate body.
- Precision injection molding around a precisely tapered pin allows for high reproducibility.
- Improved precision of reading because to unique integrated flow guides that control float movement.
- With the ability to read flow instantly from scale graduations on both sides of the indicating tube, you can save time.
