Dwyer Instruments RMB-85-SSV | Flowmeter | Range 10-100 GPH water - generaltechuae

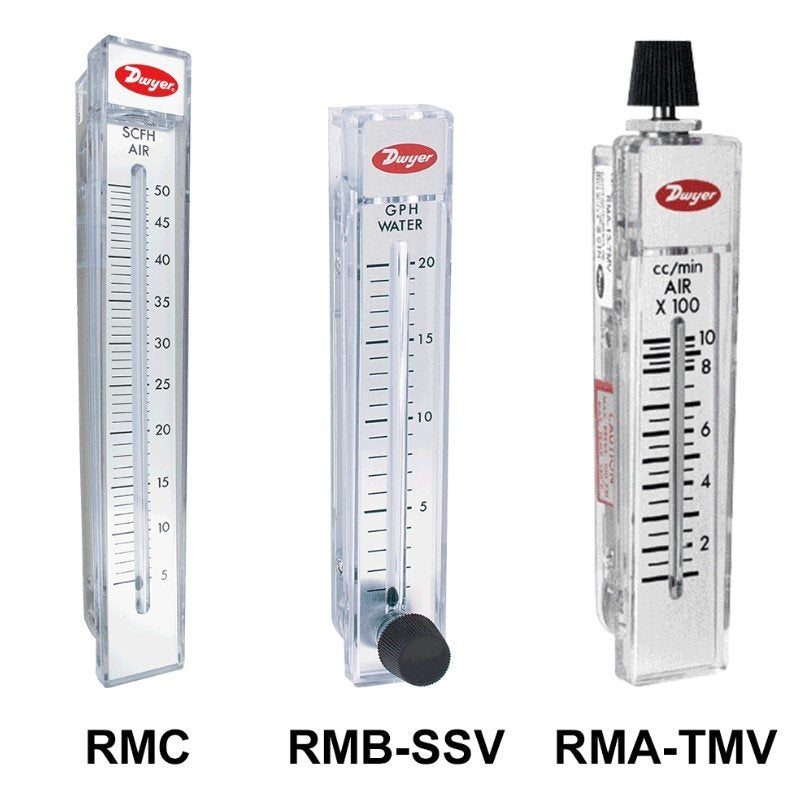

Dwyer RMB-85-SSV | Rate-Master Flowmeter | 10-100 GPH Water, 5" Scale, Stainless Steel Valve

Part Number : RMB-85-SSV

The Dwyer RMB-85-SSV is a Rate-Master flowmeter that reads 10-100 GPH water directly on a 5" (127 mm) scale and comes with a stainless steel valve. Suited to general-purpose gas and liquid flow indication, the RMB-85-SSV can be surface or panel mounted.

  • Range 10-100 GPH water on the 5" (127 mm) scale, stainless steel valve fitted
  • 3% accuracy and 1/4" female NPT process connections on the RMB-85-SSV
  • RMB-85-SSV rated to 100 psi (6.9 bar) and 130°F (54°C) maximum operating conditions
  • Wetted parts of the RMB-85-SSV: polycarbonate body, Neoprene/Buna-N O-rings, stainless steel metal parts
  • RMB-85-SSV body swaps within its 5" scale size for cleaning or a range change, leaving pipework in place
  • Weighs 13 oz (368.5 g); the RMB-85-SSV meets RoHS II (EU Directive 2011/65/EU)
Availability: low stock
Free UAE shipping available
For pricing, please contact our experts.
