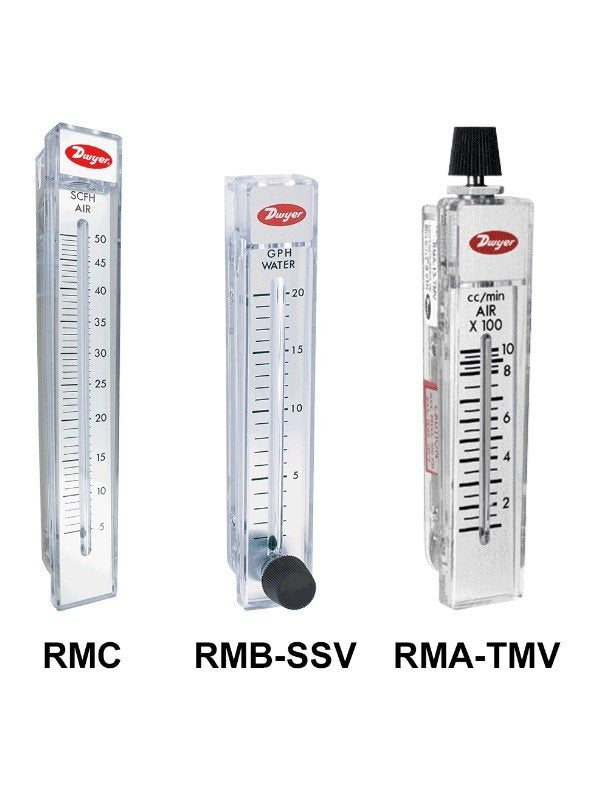

Dwyer RMC-103 | Rate-Master Flowmeter | 20-200 SCFH Air, 10" Scale, No Valve

Part Number : RMC-103

Dwyer RMC-103 covers 20-200 SCFH air on a direct-reading 10" (254 mm) Rate-Master scale, supplied without a valve. Intended for general gas and liquid service, this RMC series unit (RMC-103) mounts on a surface or in a panel.

  • Range 20-200 SCFH air on the 10" (254 mm) scale, no valve fitted
  • 2% accuracy and 1/2" female NPT process connections on the RMC-103
  • RMC-103 rated to 100 psi (6.9 bar) and 130°F (54°C) maximum operating conditions
  • Wetted parts of the RMC-103: polycarbonate body, Neoprene/Buna-N O-rings, stainless steel metal parts
  • RMC-103 body swaps within its 10" scale size for cleaning or a range change, leaving pipework in place
  • Weighs 39 oz (1105.6 g); the RMC-103 meets RoHS II (EU Directive 2011/65/EU)
Availability: low stock
Free UAE shipping available
For pricing, please contact our experts.
