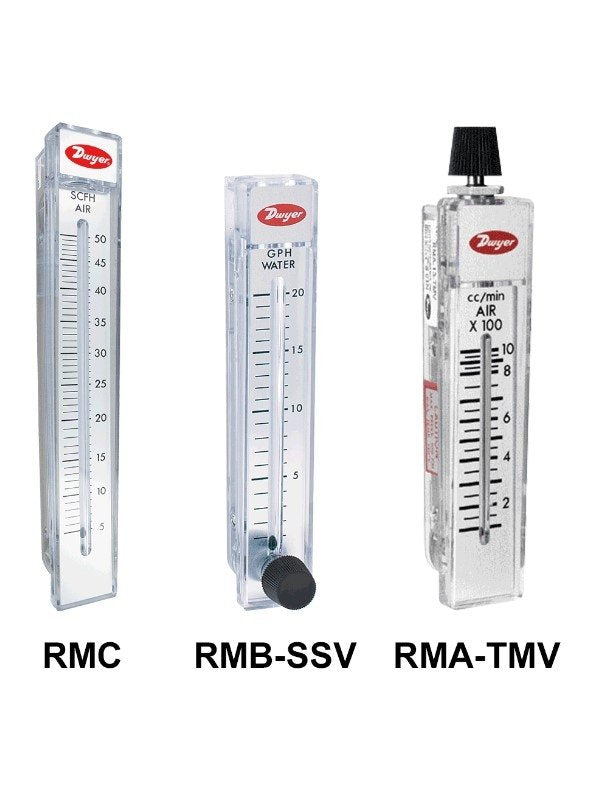

Dwyer RMC-144 | Rate-Master Flowmeter | 0.8-7 GPM Water, No Valve
Dwyer RMC-144 is a Rate-Master direct-reading flowmeter scaled 0.8-7 GPM of water on a 10" scale and supplied without a valve. The RMC-144 suits general-purpose water flow indication and can be surface or panel mounted.
- 0.8-7 GPM water range, 2% accuracy
- RMC-144: polycarbonate body with neoprene and Buna-N O-rings and stainless metal parts
- 1/2" female NPT process connections on the RMC-144
- Rated to 100 psi (6.9 bar) and 130°F (54°C); RMC-144 weighs 39 oz (1105.6 g)
- Flowmeter body swaps within the same scale size on the RMC-144 for range changes and cleaning without breaking the pipework
- RMC-144 meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
- Specifications
- Features
- Downloads
| Part Number | RMC-144 |
| Brand | Dwyer |
| Series | Rate-Master |
| Accuracy | 2% |
| Weight | 39 oz (1105.6 g) |
| Process Connection | 1/2" female NPT |
| Wetted Materials | Polycarbonate body; neoprene and Buna-N O-rings; SS metal parts; float material depends on range |
| Approvals | EU Directive 2011/65/EU (RoHS II) |
| Range | 0.8-7 GPM water |
| Scale | 10" |
| Valve | No Valve |
| Maximum Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 130 °F (54 °C) |
- Direct reading scales remove the need for difficult conversions.
- Because the stainless steel backbone absorbs pipe torque, installation damage and costs are reduced.
- Long operational life and a sturdy, non-breakable polycarbonate body.
- Precision injection molding around a precisely tapered pin allows for high reproducibility.
- Improved precision of reading because to unique integrated flow guides that control float movement.
- With the ability to read flow instantly from scale graduations on both sides of the indicating tube, you can save time.
