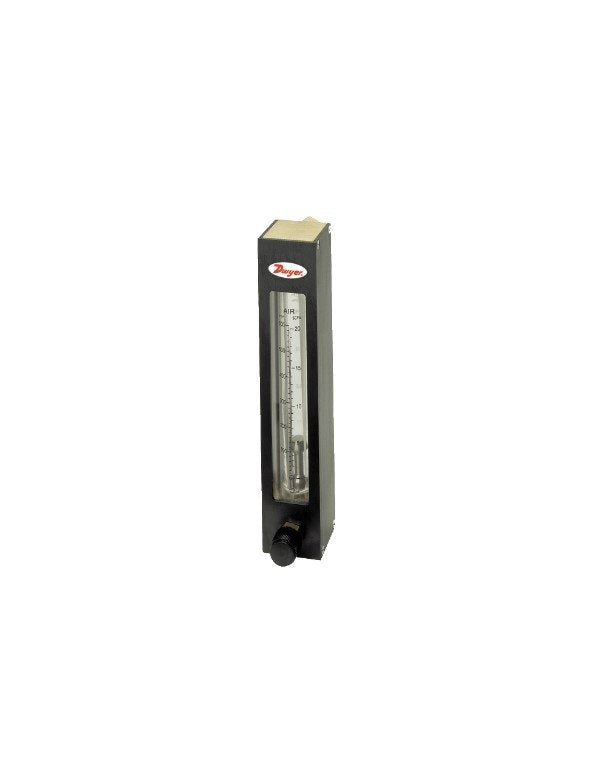

Dwyer Instruments RSF014V | Rotatable scale flowmeter | Max. flow rate 20 SCFM (575 SLPM) air | 4 GPM (15 LPM) water
Air, water, and other frequently used gases may all be directly measured by using the Model RSF014V Rotatable Scale Flowmeters. These flowmeters have graduations written on a spinning polycarbonate tube shield, and their direct read scales eliminate the need for correlation charts. They have brass and stainless steel borosilicate glass tubes with choices for SS metering valves.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-7% FS |
Connection | Two 3/8" female NPT |
Manufacturer | Dwyer Instruments |
Material | Wetted: Flowtube: Borosilicate glass Float: Brass/SS models: 316 SS PTFE models: PTFE Float stops: Brass/SS models: 316 SS PTFE models: PTFE End fittings: Brass/SS models: Brass or 316 SS PTFE models: PTFE O-rings: Brass/SS models: Fluoroelastomer PTFE models: PTFE |
Maximum Operating Pressure | 150 psig (10.34 bar) @ 200°F (93°C) PTFE models: 100 psig (6.7 bar) |
Maximum operating temperature | 250°F (121°C). PTFE models: 150°F (65°C) |
Mounting | Vertical or panel mount |
Panel Cutout | Drill two 7/8" diameter holes 9.469" (240.5 mm) apart (for panel mount meters only) |
Ratio | Turn-down: 10:1 |
Repeatability | +/-0.25% FS |
Scale | Direct Reading 127 mm scales for air and water |
Turn-down Ratio | 10:1 |
Type | Rotatable Scale Flowmeters |
Valves | 6-turn needle (standard on models indicating "with valve") |
- Time is saved and a more precise reading is possible because to the 1.5 X magnification lens and reflective lens backdrop, which also lessen parallax and eye strain.
- Long operational life and a magnifying lens to improve reading resolution are features of the robust polycarbonate front cover, which also protects the tube from breaking.
- Added safety in the case of a breakage thanks to the safety blow-out rear panel that is incorporated.
