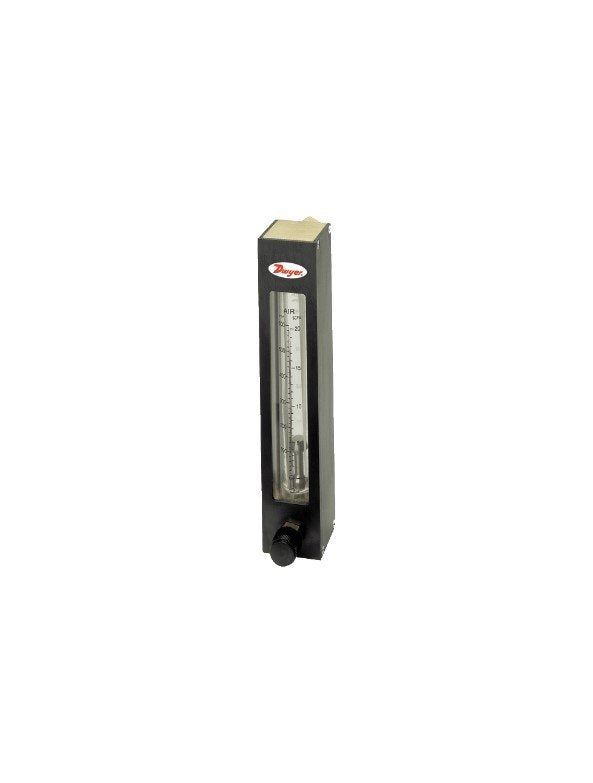

Dwyer RSF024V | Rotatable Scale Flowmeter | 20 SCFM Air | 4 GPM Water
Part Number : RSF024V
The RSF024V from Dwyer is a rotatable scale flowmeter whose full scale reaches 20 SCFM (575 SLPM) on air and 4 GPM (15 LPM) on water. Direct-reading graduations on a rotating tube shield remove the need for correlation charts on the RSF024V.
- RSF024V repeatability ±0.25% FS, accuracy ±7% FS
- Two 3/8 in female NPT connections on the RSF024V
- RSF024V pressure limit: 150 psig (10.34 bar) at 200 °F (93 °C), brass/SS
- Mount the RSF024V vertically or in a panel; turn-down 10:1
- The RSF024V carries 127 mm air and water scales
