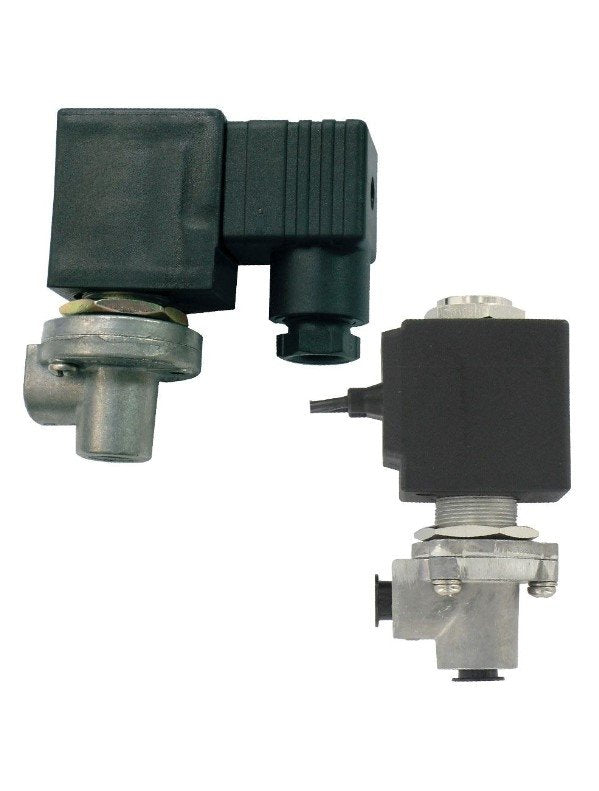

Dwyer RSV3L | Pilot Solenoid Valve | Wire Lead Connection, Cv 0.33
Part Number : RSV3L
The Dwyer RSV3L is a pilot solenoid valve with wire lead electrical connection and a Cv of 0.33, used to operate the Series RDCV remote-type diaphragm valve. The RSV3L can drive diaphragm valves of any size and may be installed in any orientation.
- RSV3L electrical connection: Wire leads, 18 AWG, 22" (55 cm)
- 1/8" female NPT process port; RSV3L pneumatic tube run up to 3 m (9.8 ft)
- The RSV3L works from 4.4 to 124.7 psi (0.3 to 8.6 bar)
- NEMA 4X (IP65) enclosure and CE approval for the RSV3L
- Aluminium body, 304 SS core and spring, NBR seals on the RSV3L
Free UAE shipping available
For pricing, please contact our experts.
