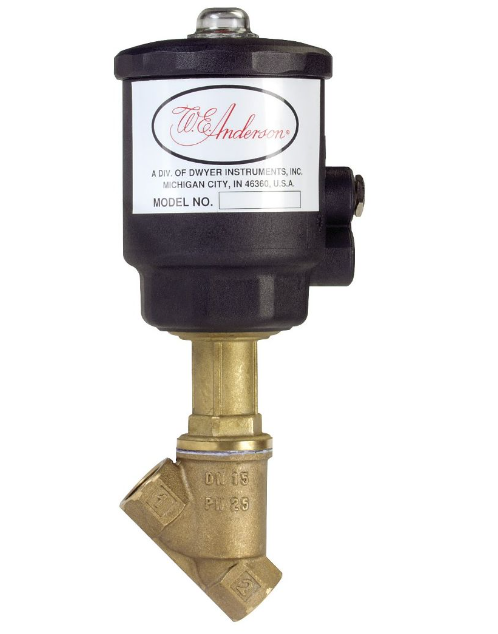

Dwyer Instruments SAV-BTE3-NC | Angle seat valve | 1-1/2" NPT | 3-9/16" actuator dia.
A high-temperature-trim pneumatic angle seat valve with a 1-1/2-inch NPT connection, 3-9/16-inch actuator and normally closed (NC) configuration, designed for hot water and steam service. Free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. SAV-BTE3-NC
The Dwyer SAV-BTE3-NC features Dwyer's BT high-temperature body trim, using PTFE and FKM sealing materials instead of the standard NBR seals used in the ST-body SAV range. This makes it suitable for elevated-temperature applications such as hot water, low-pressure steam and thermal oil.
Designed for 1-1/2-inch NPT piping with a 3-9/16-inch pneumatic piston actuator, the SAV-BTE3-NC provides fast, positive on/off control in an angle-body configuration. Its normally closed (NC) configuration means the valve remains closed under normal unpowered conditions and opens when pneumatic pressure is applied, providing fail-closed operation for applications where the line needs to shut off by default.
The angle-body design helps reduce flow resistance and pressure drop compared with a comparable globe valve, while the piston actuator is designed for repeated cycling in process and utility applications.
Need a different configuration? The Dwyer range also includes the SAV-BTE3-NO High-Temperature Angle Seat Valve (1-1/2" NPT, 3-9/16" Actuator, NO) for applications requiring normally open operation.
Ready to order the SAV-BTE3-NC? Speak to our team. Call +971 6 5436933.
Key Benefits
- BT high-temperature trim with PTFE/FKM sealing materials
- Designed for hot water, low-pressure steam and thermal-oil service
- 1-1/2-inch NPT process connection
- 3-9/16-inch pneumatic piston actuator
- Normally closed (NC) configuration for fail-closed shutoff
- Angle-body design for efficient on/off flow control
- Stainless steel wetted parts
- Suitable for applications involving frequent valve cycling
Who This Product Is Best For
- Process engineers working with elevated-temperature utility lines
- HVAC and mechanical contractors handling hot-water systems
- Industrial facilities using pneumatic on/off valves for process control
- Engineers working with low-pressure steam or thermal-oil lines
- System integrators requiring normally closed pneumatic valve operation
How to Install & Commission It
- Install the SAV-BTE3-NC in the process line using the 1-1/2-inch NPT connection.
- Confirm that the valve, seal materials and process conditions are suitable for the intended service.
- Connect the pneumatic actuator to the appropriate compressed-air supply.
- Verify the normally closed behavior: the valve should remain closed when pneumatic pressure is removed.
- Cycle the valve and check for smooth, positive operation before commissioning the system on hot service.
Frequently Asked Questions
What makes the SAV-BTE3-NC different from standard ST-body SAV valves?
The SAV-BTE3-NC uses BT high-temperature trim with PTFE and FKM sealing materials, intended for elevated-temperature service.
What NPT size is the SAV-BTE3-NC?
It has a 1-1/2-inch NPT connection.
What actuator diameter does the SAV-BTE3-NC use?
The pneumatic actuator has a 3-9/16-inch diameter.
Is the SAV-BTE3-NC normally open or normally closed?
It is normally closed (NC). The valve remains closed when unpowered and opens when pneumatic pressure is applied.
What applications suit the SAV-BTE3-NC?
The supplied product information identifies hot water, low-pressure steam, thermal oil and other elevated-temperature on/off process lines as suitable applications.
What are the seal materials?
The high-temperature trim uses PTFE and FKM sealing materials.
What are the wetted parts?
The supplied specification lists stainless steel wetted parts.
Does GeneralTech Shop deliver the SAV-BTE3-NC across the UAE?
Yes. Call +971 6 5436933 to confirm availability and delivery timelines to your emirate.
Should I choose the SAV-BTE3-NC or SAV-BTE3-NO?
Both models use a 1-1/2-inch NPT connection, BT high-temperature trim and a 3-9/16-inch actuator. The SAV-BTE3-NC provides normally closed operation, while the SAV-BTE3-NO provides normally open operation.
