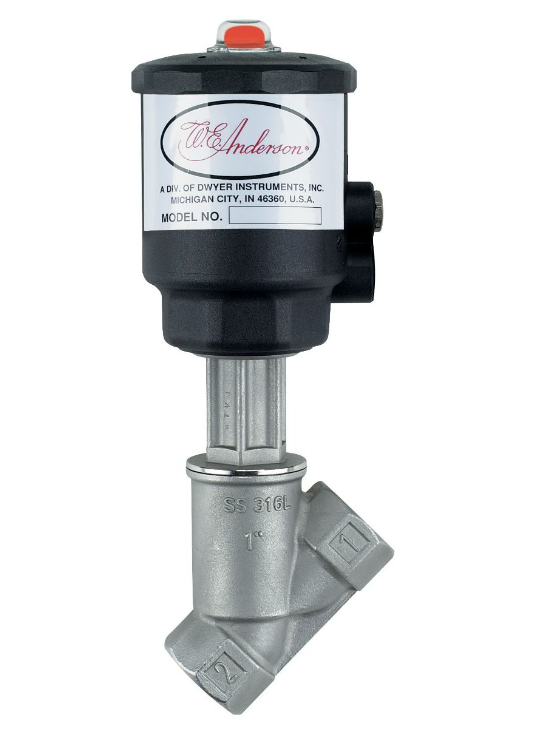

Dwyer Instruments SAV-STE3-NC | Angle seat valve | 1-1/2" NPT | 3-9/16" actuator dia.
The Dwyer SAV-STE3-NC is a pneumatically actuated, normally closed angle seat valve designed for reliable on/off process control. With a 1-1/2" NPT connection and 3-9/16" actuator, it provides fast, positive shutoff for steam, water, air, and general process lines.
Request a Quote: Call +971 6 5436933
Part Number: SAV-STE3-NC
The Dwyer SAV-STE3-NC is designed for demanding process applications where dependable pneumatic on/off control and fail-safe shutoff are required. Its normally closed configuration keeps the valve closed under unpowered conditions and opens when pneumatic pressure is applied. If air pressure is lost, the valve returns to the closed position, helping provide automatic shutoff at critical process points.
The angle-body design provides an efficient flow path and can reduce flow resistance and pressure drop compared with a standard globe valve of similar size. The pneumatic piston actuator is suitable for applications involving frequent cycling, including batching, washdown, and process interlock operations.
The valve features stainless steel wetted parts and a PTFE seat, providing broad compatibility for a range of process media. Its compact actuator footprint also makes it practical for installation within existing skids, panels, and process equipment layouts.
The SAV-STE3-NC is part of the Dwyer Instruments angle seat valve range available through GeneralTech Shop. Contact our team to confirm whether this configuration matches your application requirements.
Key Benefits
- 1-1/2" NPT process connection
- 3-9/16" pneumatic actuator
- Normally closed configuration for fail-safe shutoff
- Angle-body design for efficient flow
- Stainless steel wetted parts
- PTFE seat material
- Pneumatic piston actuator for frequent cycling
- Suitable for steam, water, air, and general process applications
- Compact actuator footprint for easier installation
Who This Product Is Best For
The Dwyer SAV-STE3-NC is suitable for process and utility engineers, industrial automation professionals, maintenance teams, and control contractors requiring reliable pneumatic on/off control in 1-1/2" NPT process lines.
It is particularly suited to applications where the valve needs to remain closed when pneumatic power is unavailable, including process shutoff points, batching systems, washdown systems, and process interlocks.
How to Use
- Install the SAV-STE3-NC in the process line using the 1-1/2" NPT connection.
- Connect the pneumatic actuator to a suitable compressed-air supply.
- Verify that the valve remains closed when pneumatic pressure is removed.
- Apply pneumatic pressure to open the valve.
- Cycle the valve several times to confirm smooth and positive operation.
- Verify the complete installation before commissioning the process system.
Frequently Asked Questions
What is the NPT size of the SAV-STE3-NC?
The valve has a 1-1/2" NPT connection.
What actuator does the SAV-STE3-NC use?
It uses a 3-9/16" pneumatic actuator.
Is the SAV-STE3-NC normally open or normally closed?
The SAV-STE3-NC is normally closed (NC). It remains closed until pneumatic pressure is applied to open it.
What materials are used in the valve?
The wetted parts are made from stainless steel, with a PTFE seat.
What applications is the SAV-STE3-NC suitable for?
It is designed for pneumatic on/off control in steam, water, air, and general process lines, including applications such as batching, washdown, and process interlocks.
Does GeneralTech Shop deliver the SAV-STE3-NC across the UAE?
Contact GeneralTech Shop at +971 6 5436933 to confirm availability and delivery timelines for your emirate.
Is a calibration certificate available?
Certification and calibration availability should be confirmed with the GeneralTech Shop team. Call +971 6 5436933 for order-specific details.
