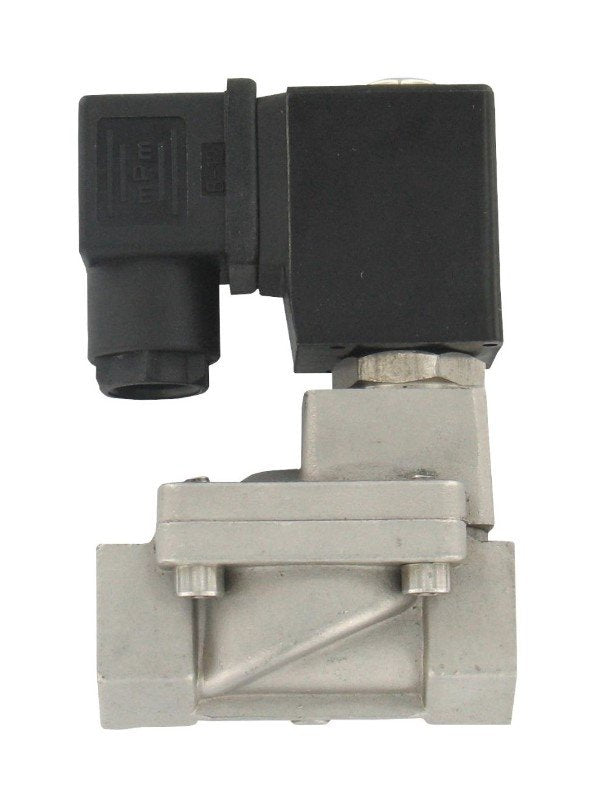

Dwyer SBSV-S9F4 | Stainless Steel Solenoid Valve | 2-Way NC, 2" NPT, 24 VDC
Part Number : SBSV-S9F4
For on/off control of air, gas or water in 2" NPT pipework, the Dwyer SBSV-S9F4 two-way solenoid valve combines a 316 stainless steel body with a 24 VDC coil. It is normally closed, works from 0.5 to 13 bar at the 2" size and uses an FKM seal.
- Normally closed design with 2" female NPT ports, 316 SS body and 304 SS spring
- Rated 0.5 to 13 bar at 2" (316 SS), with a 17 bar maximum operating pressure
- FKM seal and 304 SS spring in the 2" 316 SS body; ambient 0 to 65°C
- 24 VDC coil with DIN connector on the 2" 316 SS valve; NEMA 13 (IP54) enclosure
- SBSV-S9F4 mounts in any position, ideally with the solenoid vertically above the valve; weight 4.4 kg (9.7 lb)
