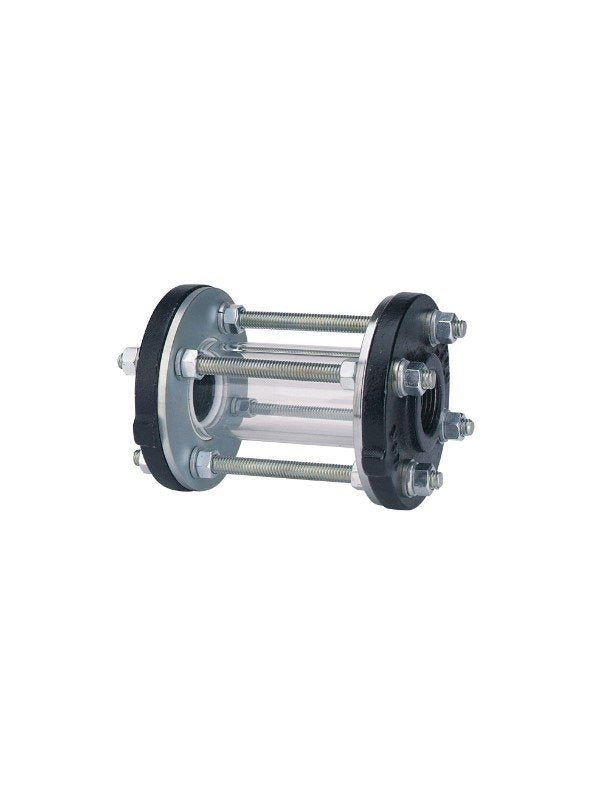

Dwyer Instruments SFI-400F-2 | Sight flow indicator | 2" body | 5.370" (137 mm) length | 6.000" (152 mm) flange dia. | 3.000" (76 mm) viewing dia. | 14 lb (6.4 kg)

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : SFI-400F-2

A model of sight flow indicator, the SFI-400F-2 is made of high-quality materials and has undergone safety testing to ensure long-lasting, dependable service at a reasonable cost. The 400 Series features cast iron or 316 SS bodies, tube-style viewing, and threaded or ANSI flanged process connections. The glass tube structure of the 400 allows for easy flow viewing from any angle.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Connection	Threaded or flanged
Diameter	Flange: 6.000" (152 mm)
Diameter	Viewing: 3.000" (76 mm)
Length	5.370" (137 mm)
Manufacturer	Dwyer Instruments
Material	Wetted: Tube: Borosilicate Body: cast iron or 316 SS Gasket: PTFE
Maximum Operating Pressure	50 psig (3.45 bar)
Maximum operating temperature	200°F (93°C)
Size	Body: 2"
Type	Sight Flow Indicator
Weight	14 lb (6.4 kg)

Manufactured using high-quality materials, ensuring durability and reliability in various industrial applications.
Undergo rigorous safety testing to ensure compliance with safety standards, guaranteeing safe operation.
Designed for extended service life, providing dependable performance over time, reducing the need for frequent replacements.
Available with either threaded or ANSI flanged process connections, providing flexibility for installation in different piping systems.
Featuring tube-style viewing, allowing operators to observe fluid flow easily from any angle, facilitating efficient monitoring of processes.
Offered with bodies made of either cast iron or 316 stainless steel, providing options to suit different application requirements and environmental conditions.
Constructed with glass tubes, providing a clear view of fluid flow, enhancing visibility and facilitating quick and accurate monitoring.

DOWNLOAD CATALOG
