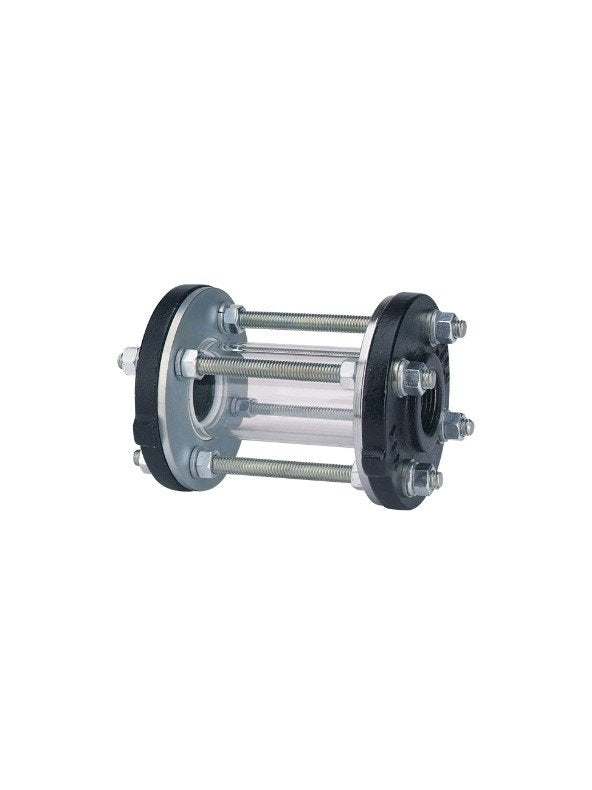

Dwyer SFI-400F-4 | Tube Sight Flow Indicator | 4" Body, 5.000" Viewing Dia.

Part Number : SFI-400F-4

Using a borosilicate glass tube, the Dwyer SFI-400F-4 4" sight flow indicator shows flow from any viewing angle. The 400 Series, which includes the SFI-400F-4, is offered with cast iron or 316 SS bodies and threaded or ANSI flanged connections.

  • 4" body, 9.000" (229 mm) flange diameter (SFI-400F-4)
  • Viewing diameter 5.000" (127 mm); overall length 5.750" (146 mm) on the SFI-400F-4
  • SFI-400F-4 weight: 31 lb (14.1 kg)
  • The 4" SFI-400F-4 is rated to 50 psig (3.45 bar) and 200°F (93°C)
  • Wetted parts for SFI-400F-4: borosilicate tube, cast iron or 316 SS body (series options), PTFE gasket
Availability: low stock
Free UAE shipping available
For pricing, please contact our experts.
