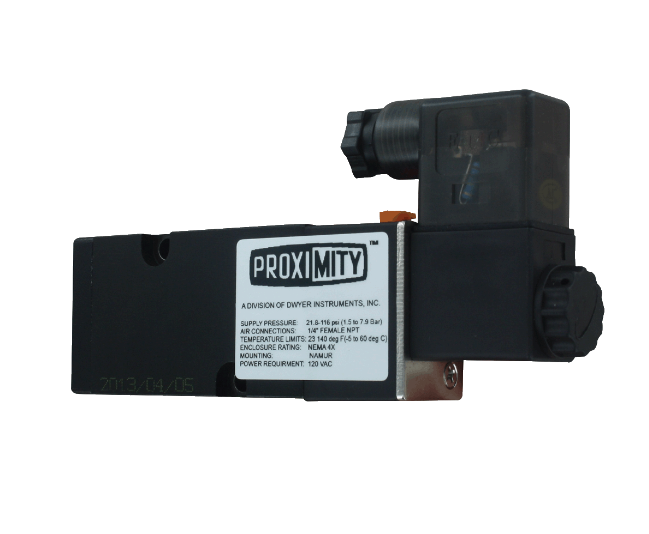

Dwyer SN-3A | NAMUR Solenoid Valve | 3/2 Spring Return, 110 VAC
Part Number : SN-3A
The Dwyer SN-3A is a 3/2 spring return solenoid valve with a 110 VAC coil, made to mount directly on spring return pneumatic valve actuators. Mounting this 3/2 valve direct to the actuator removes the need for tubing, fittings or brackets, which cuts assembly cost.
- 3/2 spring return function with a 110 VAC coil
- NAMUR mounting with 1/4" female NPT air connection (3/2, 110 VAC)
- Operating pressure 1.5 to 7.9 bar (22 to 116 psi) and temperature -5 to 60°C on the SN-3A
- Manual override as standard; nitrile o-rings supplied with the 110 VAC 3/2 valve
- DIN 43650 form A electrical plug, IP65 rating, CE marked; SN-3A weighs 0.45 kg (1.0 lb)
