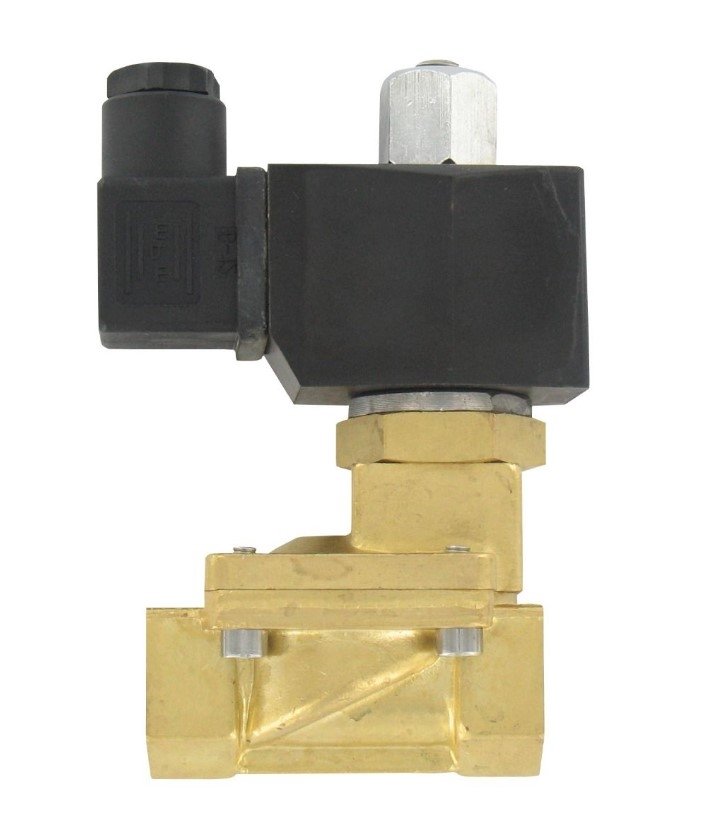

Dwyer SSV-B1N2 | Brass Solenoid Valve | 2-Way, 1/8" NPT, 220 VAC
Part Number : SSV-B1N2
Sized at 1/8" NPT and wound for 220 VAC, the SSV-B1N2 is a two-way Dwyer solenoid valve with a brass body for air, gas and water. It uses a NBR seal rated for process media up to 80°C, with an operating window of 0 to 6 bar in the 1/8" size.
- Brass body and 304 SS spring with 1/8" female NPT ends
- 0 to 6 bar operating pressure at 1/8" in brass, 12 bar maximum
- Process media up to 80°C through the 1/8" body (NBR seal)
- 220 VAC coil with DIN connector on the 1/8" brass valve; NEMA 13 (IP54) enclosure
- SSV-B1N2 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.40 kg (0.88 lb)
