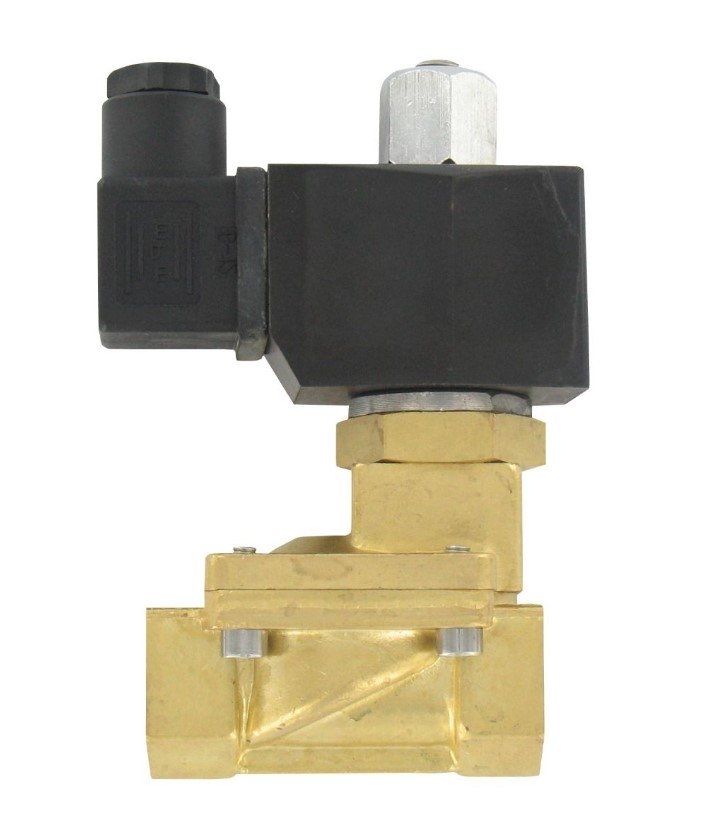

Dwyer SSV-B3N2 | Brass Solenoid Valve | 2-Way, 3/8" NPT, 220 VAC
Part Number : SSV-B3N2
For on/off control of air, gas or water in 3/8" NPT pipework, the Dwyer SSV-B3N2 two-way solenoid valve combines a brass body with a 220 VAC coil. It uses a NBR seal rated for process media up to 80°C, with an operating window of 0.5 to 8 bar in the 3/8" size.
- Brass body and 304 SS spring with 3/8" female NPT ends
- 0.5 to 8 bar operating pressure at 3/8" in brass, 12 bar maximum
- Process media up to 80°C through the 3/8" body (NBR seal)
- NEMA 13 (IP54) solenoid enclosure with 220 VAC DIN coil, 3/8" brass version
- SSV-B3N2 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.90 kg (1.98 lb)
