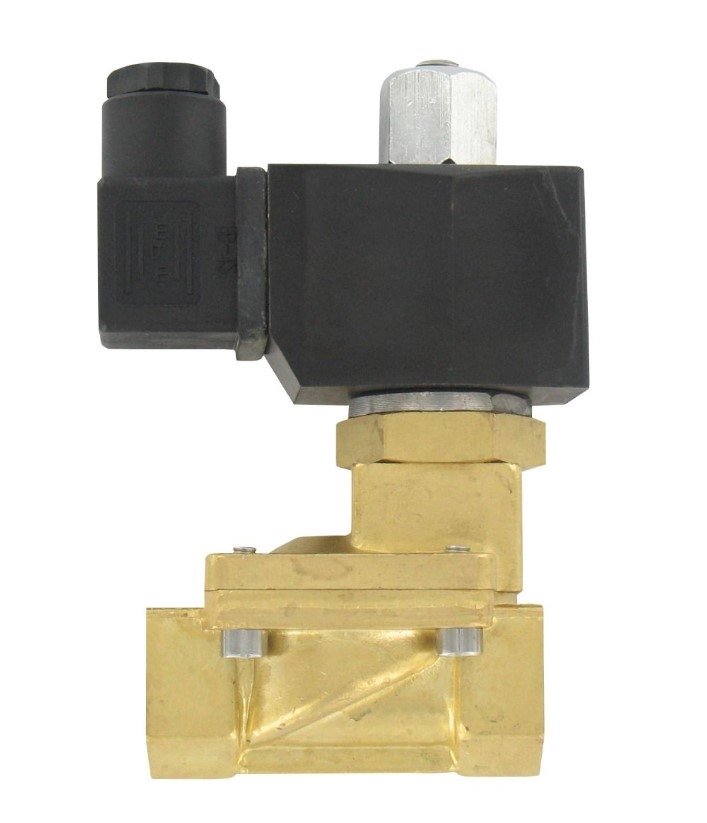

Dwyer SSV-B3N3 | Brass Solenoid Valve | 2-Way, 3/8" NPT, 24 VAC
Part Number : SSV-B3N3
The Dwyer SSV-B3N3 is a compact two-way, guide-type brass solenoid valve with 3/8" female NPT ports and a 24 VAC coil, intended for air, gas and water. It operates between 0.5 to 8 bar in this 3/8" version, and the NBR seal handles process temperatures to 80°C.
- Body brass, spring 304 SS, connections 3/8" female NPT
- Pressure range 0.5 to 8 bar for the 3/8" brass size; maximum 12 bar
- 80°C maximum process temperature with NBR seal at 3/8"
- NEMA 13 (IP54) solenoid enclosure with 24 VAC DIN coil, 3/8" brass version
- SSV-B3N3 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.90 kg (1.98 lb)
