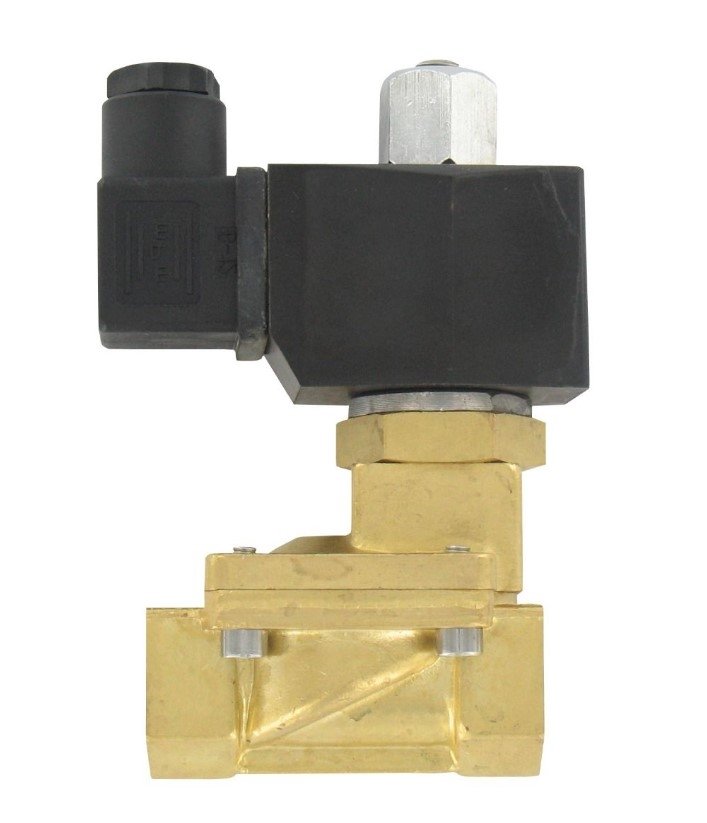

Dwyer SSV-B4N2 | Brass Solenoid Valve | 2-Way, 1/2" NPT, 220 VAC
Part Number : SSV-B4N2
The Dwyer SSV-B4N2 is a compact two-way, guide-type brass solenoid valve with 1/2" female NPT ports and a 220 VAC coil, intended for air, gas and water. It uses a NBR seal rated for process media up to 80°C, with an operating window of 0.5 to 8 bar in the 1/2" size.
- Brass body and 304 SS spring with 1/2" female NPT ends
- 0.5 to 8 bar operating pressure at 1/2" in brass, 12 bar maximum
- Process media up to 80°C through the 1/2" body (NBR seal)
- 220 VAC coil with DIN connector on the 1/2" brass valve; NEMA 13 (IP54) enclosure
- SSV-B4N2 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.90 kg (1.98 lb)
