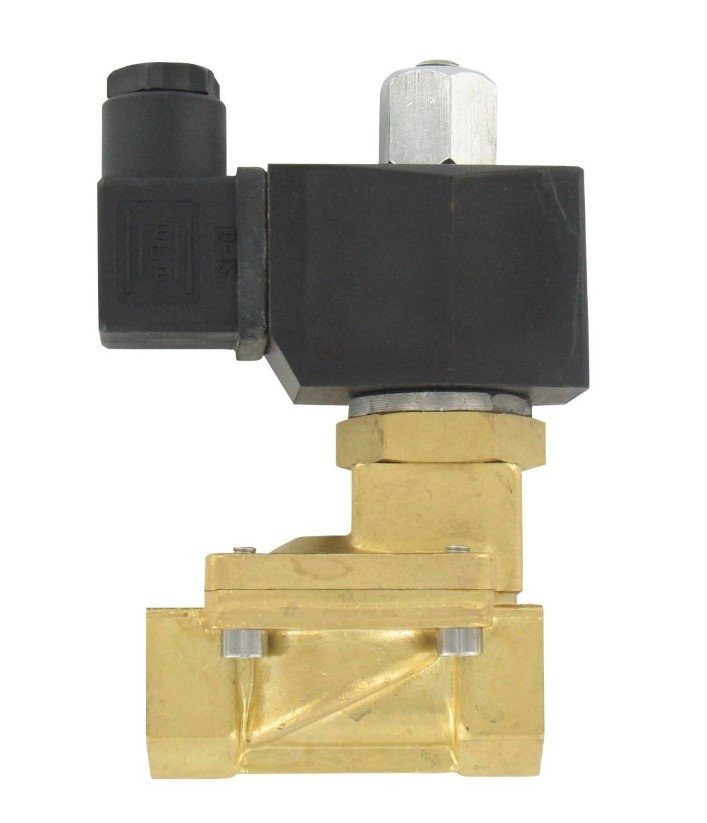

Dwyer SSV-B4N4 | Brass Solenoid Valve | 2-Way, 1/2" NPT, 24 VDC
Part Number : SSV-B4N4
Dwyer's SSV-B4N4 pairs a 1/2" NPT brass valve body with a 24 VDC DIN-connected coil for two-way switching of air, gas or water. It covers 0.5 to 8 bar of operating pressure through the 1/2" body, and the fitted NBR seal is good for process media to 80°C.
- 1/2" female NPT connections; brass body; 304 SS spring
- Rated 0.5 to 8 bar at 1/2" (brass), with a 12 bar maximum operating pressure
- For 1/2" lines: NBR seal, 80°C process limit
- 24 VDC coil with DIN connector on the 1/2" brass valve; NEMA 13 (IP54) enclosure
- SSV-B4N4 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.90 kg (1.98 lb)
