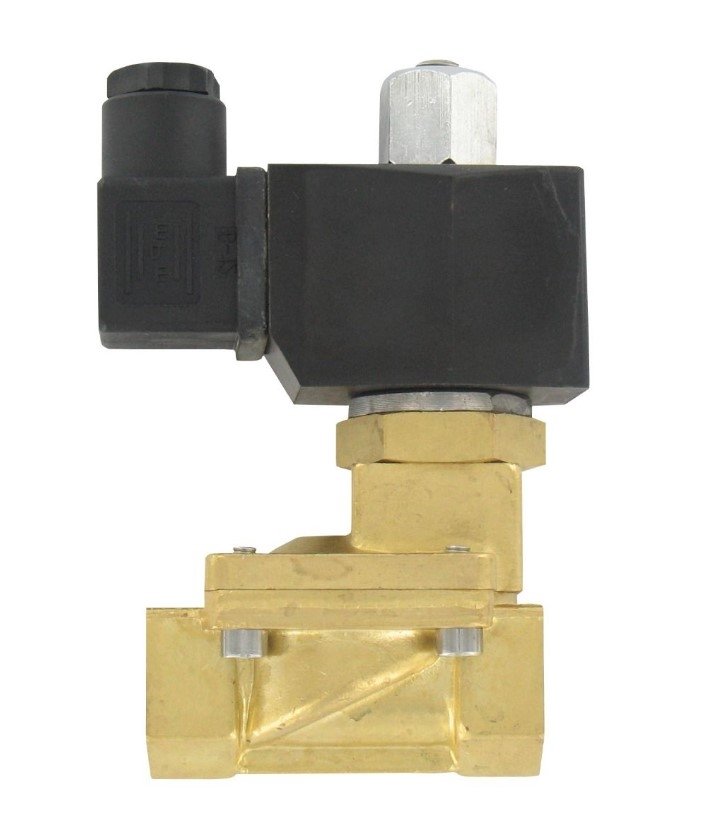

Dwyer SSV-B5N2 | Brass Solenoid Valve | 2-Way, 3/4" NPT, 220 VAC
Part Number : SSV-B5N2
Sized at 3/4" NPT and wound for 220 VAC, the SSV-B5N2 is a two-way Dwyer solenoid valve with a brass body for air, gas and water. It uses a NBR seal rated for process media up to 80°C, with an operating window of 0.5 to 8 bar in the 3/4" size.
- Brass body and 304 SS spring with 3/4" female NPT ends
- 0.5 to 8 bar operating pressure at 3/4" in brass, 12 bar maximum
- Process media up to 80°C through the 3/4" body (NBR seal)
- DIN-connected 220 VAC coil for the 3/4" brass body, housed to NEMA 13 (IP54)
- SSV-B5N2 mounts in any position, ideally with the solenoid vertically above the valve; weight 1.10 kg (2.42 lb)
Free UAE shipping available
For pricing, please contact our experts.
