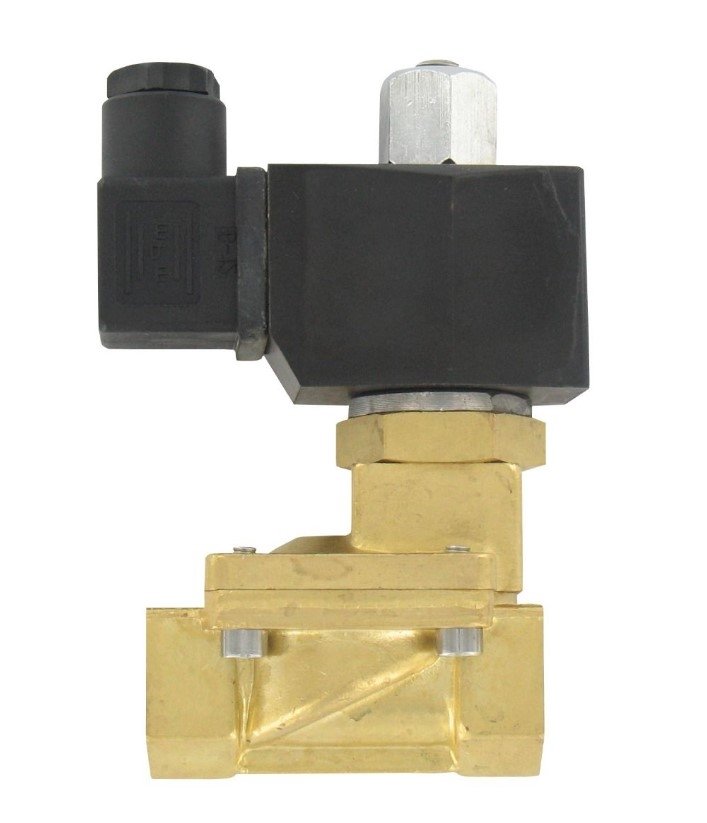

Dwyer SSV-B8N3 | Brass Solenoid Valve | 2-Way, 1-1/2" NPT, 24 VAC
Part Number : SSV-B8N3
Sized at 1-1/2" NPT and wound for 24 VAC, the SSV-B8N3 is a two-way Dwyer solenoid valve with a brass body for air, gas and water. It operates between 0.5 to 8 bar in this 1-1/2" version, and the NBR seal handles process temperatures to 80°C.
- Body brass, spring 304 SS, connections 1-1/2" female NPT
- Pressure range 0.5 to 8 bar for the 1-1/2" brass size; maximum 12 bar
- 80°C maximum process temperature with NBR seal at 1-1/2"
- DIN-connected 24 VAC coil for the 1-1/2" brass body, housed to NEMA 13 (IP54)
- SSV-B8N3 mounts in any position, ideally with the solenoid vertically above the valve; weight 2.80 kg (6.16 lb)
Free UAE shipping available
For pricing, please contact our experts.
