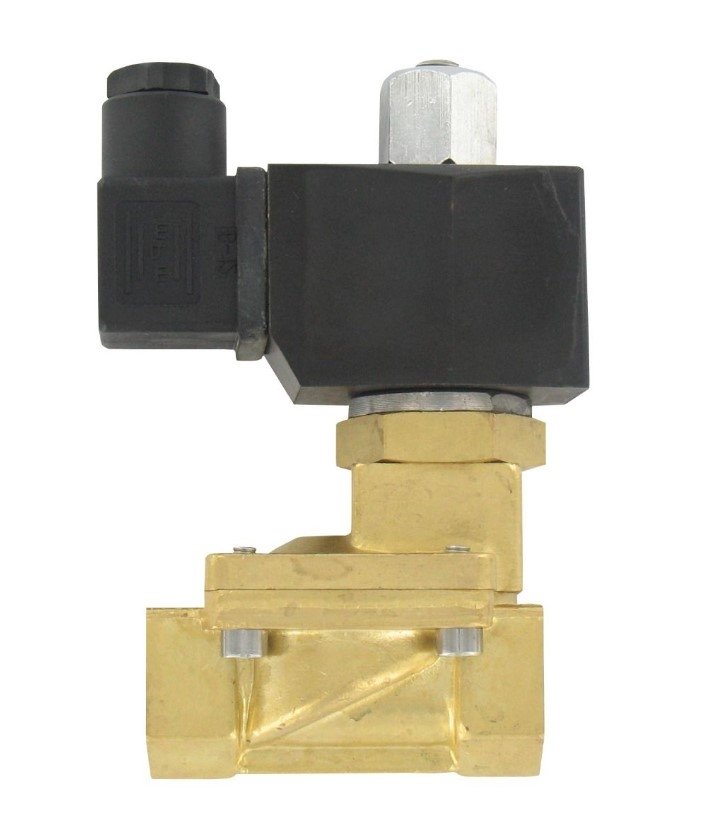

Dwyer SSV-B9N3 | Brass Solenoid Valve | 2-Way, 2" NPT, 24 VAC
Part Number : SSV-B9N3
Dwyer's SSV-B9N3 pairs a 2" NPT brass valve body with a 24 VAC DIN-connected coil for two-way switching of air, gas or water. It operates between 0.5 to 8 bar in this 2" version, and the NBR seal handles process temperatures to 80°C.
- Body brass, spring 304 SS, connections 2" female NPT
- Pressure range 0.5 to 8 bar for the 2" brass size; maximum 12 bar
- 80°C maximum process temperature with NBR seal at 2"
- NEMA 13 (IP54) solenoid enclosure with 24 VAC DIN coil, 2" brass version
- SSV-B9N3 mounts in any position, ideally with the solenoid vertically above the valve
Free UAE shipping available
For pricing, please contact our experts.
