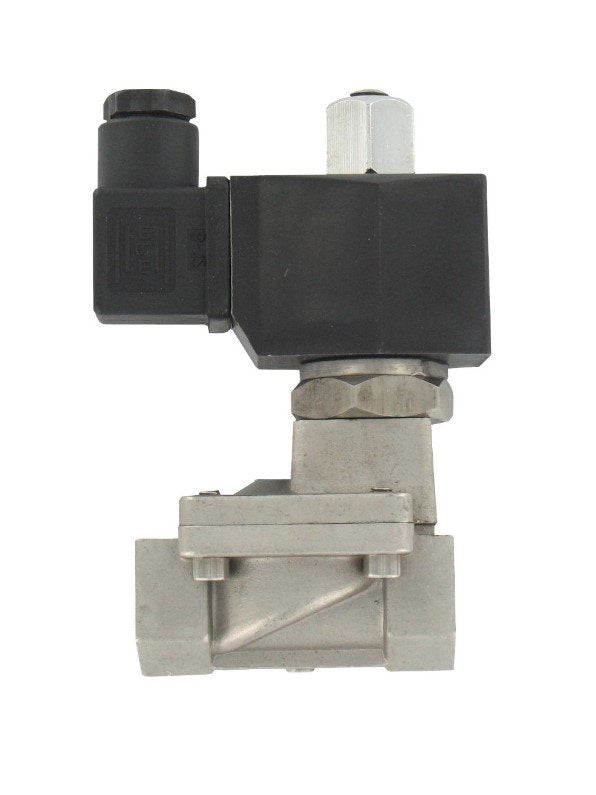

Dwyer SSV-S1F1 | Stainless Steel Solenoid Valve | 2-Way NO, 1/8" NPT, 110 VAC
Part Number : SSV-S1F1
The Dwyer SSV-S1F1 is a compact two-way, guide-type 316 stainless steel solenoid valve with 1/8" female NPT ports and a 110 VAC coil, intended for air, gas and water. It is normally open and works from 0 to 6 bar at the 1/8" size, and its FKM seal suits process temperatures up to 120°C.
- 1/8" female NPT ports on a 316 SS body with 304 SS spring
- Working pressure for the 1/8" 316 SS body: 0 to 6 bar, maximum 12 bar
- FKM seal on the 1/8" valve, process temperature to 120°C
- 110 VAC coil with DIN connector on the 1/8" 316 SS valve; NEMA 13 (IP54) enclosure
- SSV-S1F1 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.40 kg (0.88 lb)
