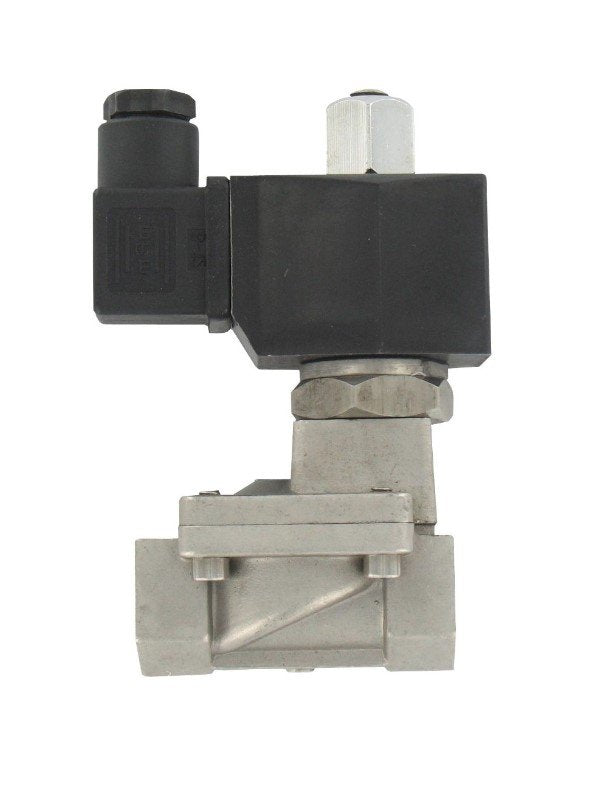

Dwyer SSV-S1F3 | Stainless Steel Solenoid Valve | 2-Way NO, 1/8" NPT, 24 VAC
Part Number : SSV-S1F3
Dwyer's SSV-S1F3 pairs a 1/8" NPT 316 stainless steel valve body with a 24 VAC DIN-connected coil for two-way switching of air, gas or water. It is normally open and operates between 0 to 6 bar in this 1/8" version, and the FKM seal handles process temperatures to 120°C.
- Body 316 SS, spring 304 SS, connections 1/8" female NPT
- Pressure range 0 to 6 bar for the 1/8" 316 SS size; maximum 12 bar
- 120°C maximum process temperature with FKM seal at 1/8"
- 24 VAC coil with DIN connector on the 1/8" 316 SS valve; NEMA 13 (IP54) enclosure
- SSV-S1F3 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.40 kg (0.88 lb)
