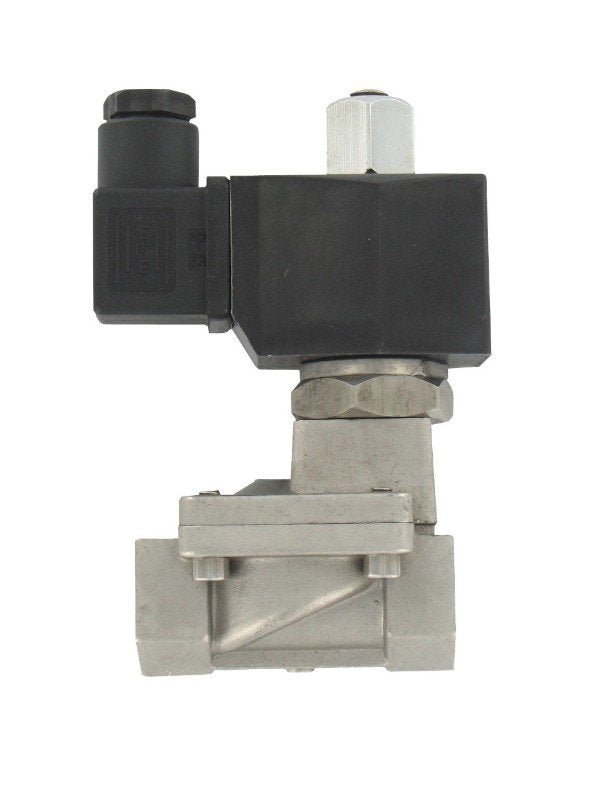

Dwyer SSV-S2F1 | Stainless Steel Solenoid Valve | 2-Way NO, 1/4" NPT, 110 VAC
Part Number : SSV-S2F1
Sized at 1/4" NPT and wound for 110 VAC, the SSV-S2F1 is a two-way Dwyer solenoid valve with a 316 stainless steel body for air, gas and water. It is normally open and works from 0 to 6 bar at the 1/4" size, and its FKM seal suits process temperatures up to 120°C.
- 1/4" female NPT ports on a 316 SS body with 304 SS spring
- Working pressure for the 1/4" 316 SS body: 0 to 6 bar, maximum 12 bar
- FKM seal on the 1/4" valve, process temperature to 120°C
- DIN-connected 110 VAC coil for the 1/4" 316 SS body, housed to NEMA 13 (IP54)
- SSV-S2F1 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.39 kg (0.86 lb)
Free UAE shipping available
For pricing, please contact our experts.
