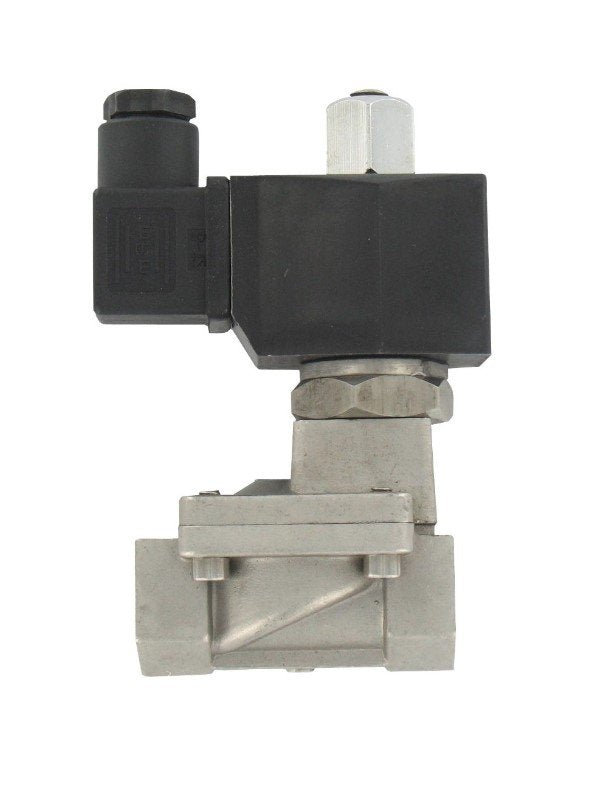

Dwyer SSV-S3F2 | Stainless Steel Solenoid Valve | 2-Way NO, 3/8" NPT, 220 VAC
Part Number : SSV-S3F2
For on/off control of air, gas or water in 3/8" NPT pipework, the Dwyer SSV-S3F2 two-way solenoid valve combines a 316 stainless steel body with a 220 VAC coil. It is normally open and uses a FKM seal rated for process media up to 120°C, with an operating window of 0.5 to 8 bar in the 3/8" size.
- 316 SS body and 304 SS spring with 3/8" female NPT ends
- 0.5 to 8 bar operating pressure at 3/8" in 316 SS, 12 bar maximum
- Process media up to 120°C through the 3/8" body (FKM seal)
- NEMA 13 (IP54) solenoid enclosure with 220 VAC DIN coil, 3/8" 316 SS version
- SSV-S3F2 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.95 kg (2.09 lb)
Free UAE shipping available
For pricing, please contact our experts.
