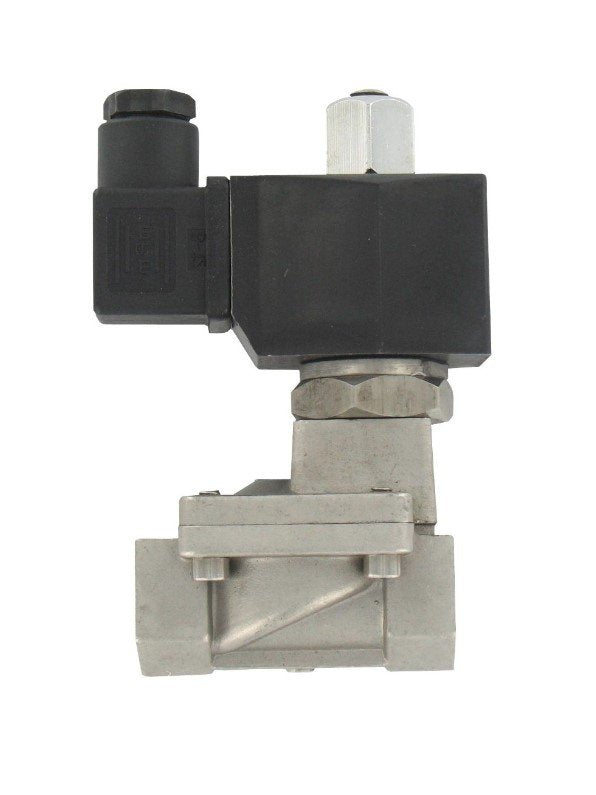

Dwyer SSV-S5F1 | Stainless Steel Solenoid Valve | 2-Way NO, 3/4" NPT, 110 VAC
Part Number : SSV-S5F1
The Dwyer SSV-S5F1 is a compact two-way, guide-type 316 stainless steel solenoid valve with 3/4" female NPT ports and a 110 VAC coil, intended for air, gas and water. It is normally open and works from 0.5 to 8 bar at the 3/4" size, and its FKM seal suits process temperatures up to 120°C.
- 3/4" female NPT ports on a 316 SS body with 304 SS spring
- Working pressure for the 3/4" 316 SS body: 0.5 to 8 bar, maximum 12 bar
- FKM seal on the 3/4" valve, process temperature to 120°C
- DIN-connected 110 VAC coil for the 3/4" 316 SS body, housed to NEMA 13 (IP54)
- SSV-S5F1 mounts in any position, ideally with the solenoid vertically above the valve; weight 1.10 kg (2.42 lb)
