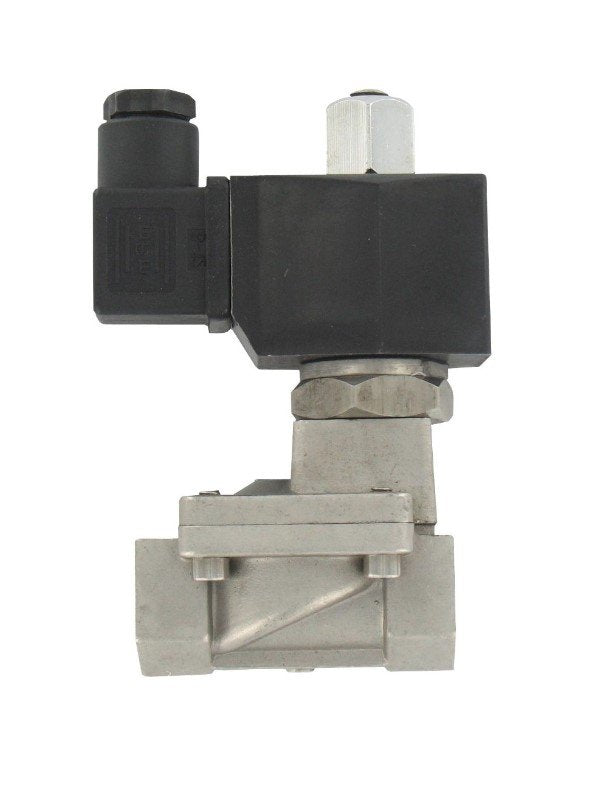

Dwyer SSV-S5F3 | Stainless Steel Solenoid Valve | 2-Way NO, 3/4" NPT, 24 VAC
Part Number : SSV-S5F3
Dwyer's SSV-S5F3 pairs a 3/4" NPT 316 stainless steel valve body with a 24 VAC DIN-connected coil for two-way switching of air, gas or water. It is normally open and operates between 0.5 to 8 bar in this 3/4" version, and the FKM seal handles process temperatures to 120°C.
- Body 316 SS, spring 304 SS, connections 3/4" female NPT
- Pressure range 0.5 to 8 bar for the 3/4" 316 SS size; maximum 12 bar
- 120°C maximum process temperature with FKM seal at 3/4"
- DIN-connected 24 VAC coil for the 3/4" 316 SS body, housed to NEMA 13 (IP54)
- SSV-S5F3 mounts in any position, ideally with the solenoid vertically above the valve; weight 1.10 kg (2.42 lb)
