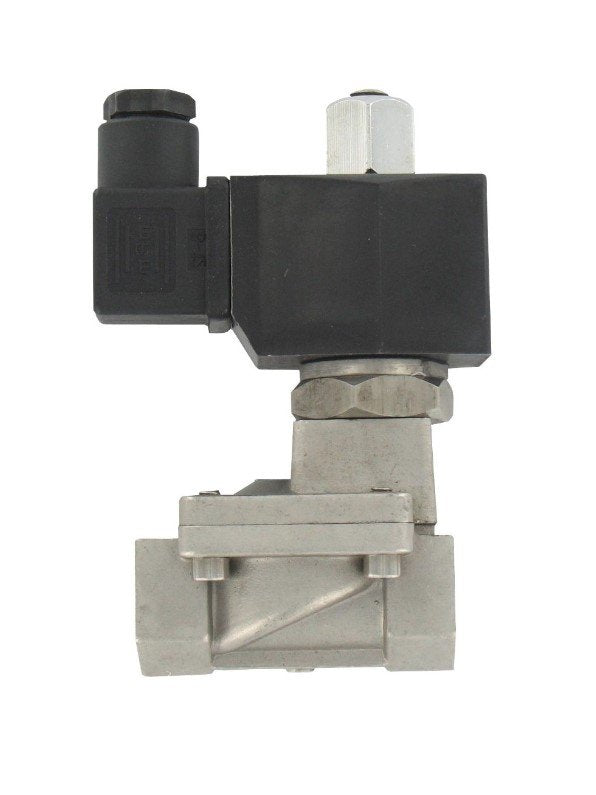

Dwyer SSV-S6F1 | Stainless Steel Solenoid Valve | 2-Way NO, 1" NPT, 110 VAC
Part Number : SSV-S6F1
Sized at 1" NPT and wound for 110 VAC, the SSV-S6F1 is a two-way Dwyer solenoid valve with a 316 stainless steel body for air, gas and water. It is normally open and works from 0.5 to 8 bar at the 1" size, and its FKM seal suits process temperatures up to 120°C.
- 1" female NPT ports on a 316 SS body with 304 SS spring
- Working pressure for the 1" 316 SS body: 0.5 to 8 bar, maximum 12 bar
- FKM seal on the 1" valve, process temperature to 120°C
- NEMA 13 (IP54) solenoid enclosure with 110 VAC DIN coil, 1" 316 SS version
- SSV-S6F1 mounts in any position, ideally with the solenoid vertically above the valve; weight 1.50 kg (3.30 lb)
