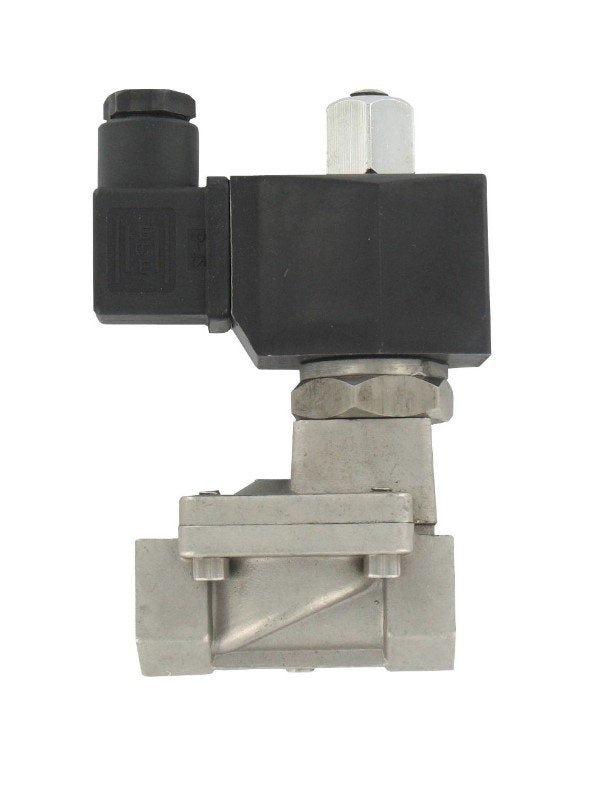

Dwyer SSV-S6F3 | Stainless Steel Solenoid Valve | 2-Way NO, 1" NPT, 24 VAC
Part Number : SSV-S6F3
For on/off control of air, gas or water in 1" NPT pipework, the Dwyer SSV-S6F3 two-way solenoid valve combines a 316 stainless steel body with a 24 VAC coil. It is normally open and operates between 0.5 to 8 bar in this 1" version, and the FKM seal handles process temperatures to 120°C.
- Body 316 SS, spring 304 SS, connections 1" female NPT
- Pressure range 0.5 to 8 bar for the 1" 316 SS size; maximum 12 bar
- 120°C maximum process temperature with FKM seal at 1"
- NEMA 13 (IP54) solenoid enclosure with 24 VAC DIN coil, 1" 316 SS version
- SSV-S6F3 mounts in any position, ideally with the solenoid vertically above the valve; weight 1.50 kg (3.30 lb)
