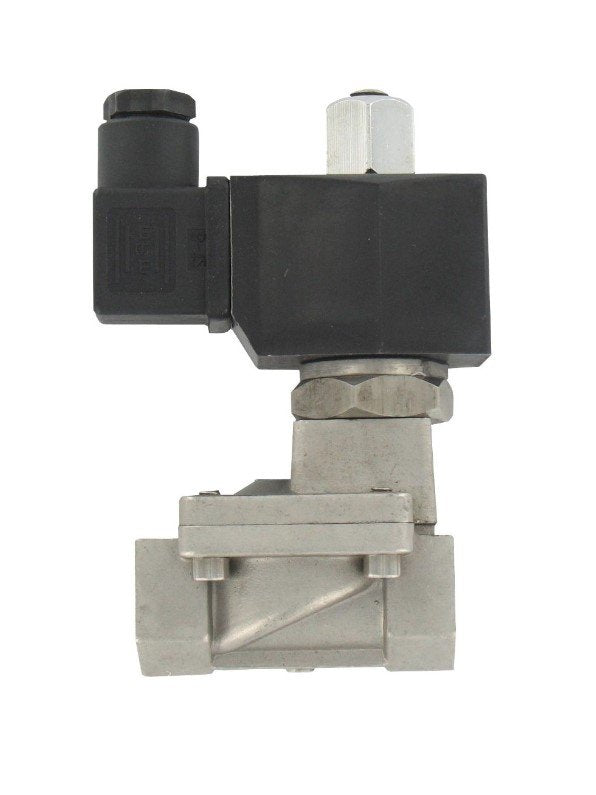

Dwyer SSV-S8F4 | Stainless Steel Solenoid Valve | 2-Way NO, 1-1/2" NPT, 24 VDC
Part Number : SSV-S8F4
Dwyer's SSV-S8F4 pairs a 1-1/2" NPT 316 stainless steel valve body with a 24 VDC DIN-connected coil for two-way switching of air, gas or water. It is normally open and covers 0.5 to 8 bar of operating pressure through the 1-1/2" body, and the fitted FKM seal is good for process media to 120°C.
- 1-1/2" female NPT connections; 316 SS body; 304 SS spring
- Rated 0.5 to 8 bar at 1-1/2" (316 SS), with a 12 bar maximum operating pressure
- For 1-1/2" lines: FKM seal, 120°C process limit
- DIN-connected 24 VDC coil for the 1-1/2" 316 SS body, housed to NEMA 13 (IP54)
- SSV-S8F4 mounts in any position, ideally with the solenoid vertically above the valve; weight 2.70 kg (5.94 lb)
Free UAE shipping available
For pricing, please contact our experts.
