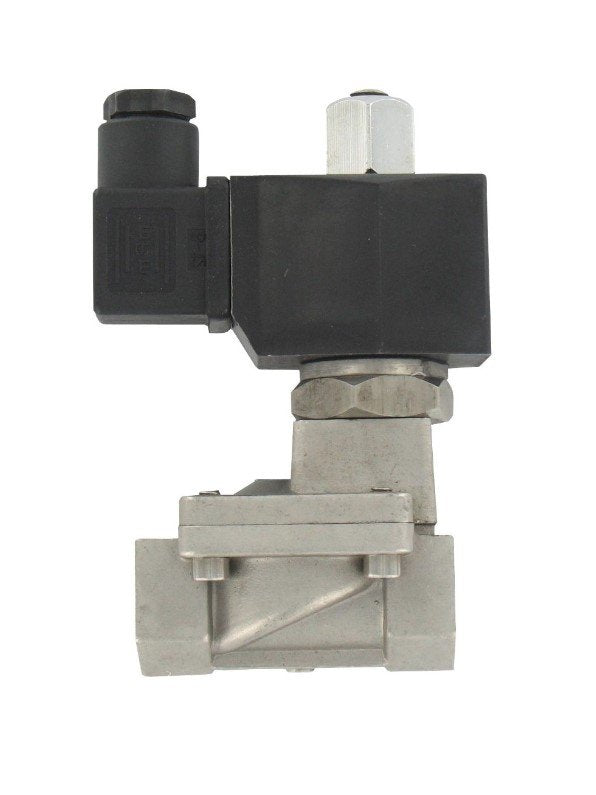

Dwyer SSV-S9F1 | Stainless Steel Solenoid Valve | 2-Way NO, 2" NPT, 110 VAC
Part Number : SSV-S9F1
The Dwyer SSV-S9F1 is a compact two-way, guide-type 316 stainless steel solenoid valve with 2" female NPT ports and a 110 VAC coil, intended for air, gas and water. It is normally open and works from 0.5 to 8 bar at the 2" size, and its FKM seal suits process temperatures up to 120°C.
- 2" female NPT ports on a 316 SS body with 304 SS spring
- Working pressure for the 2" 316 SS body: 0.5 to 8 bar, maximum 12 bar
- FKM seal on the 2" valve, process temperature to 120°C
- NEMA 13 (IP54) solenoid enclosure with 110 VAC DIN coil, 2" 316 SS version
- SSV-S9F1 mounts in any position, ideally with the solenoid vertically above the valve; weight 4.60 kg (10.1 lb)
