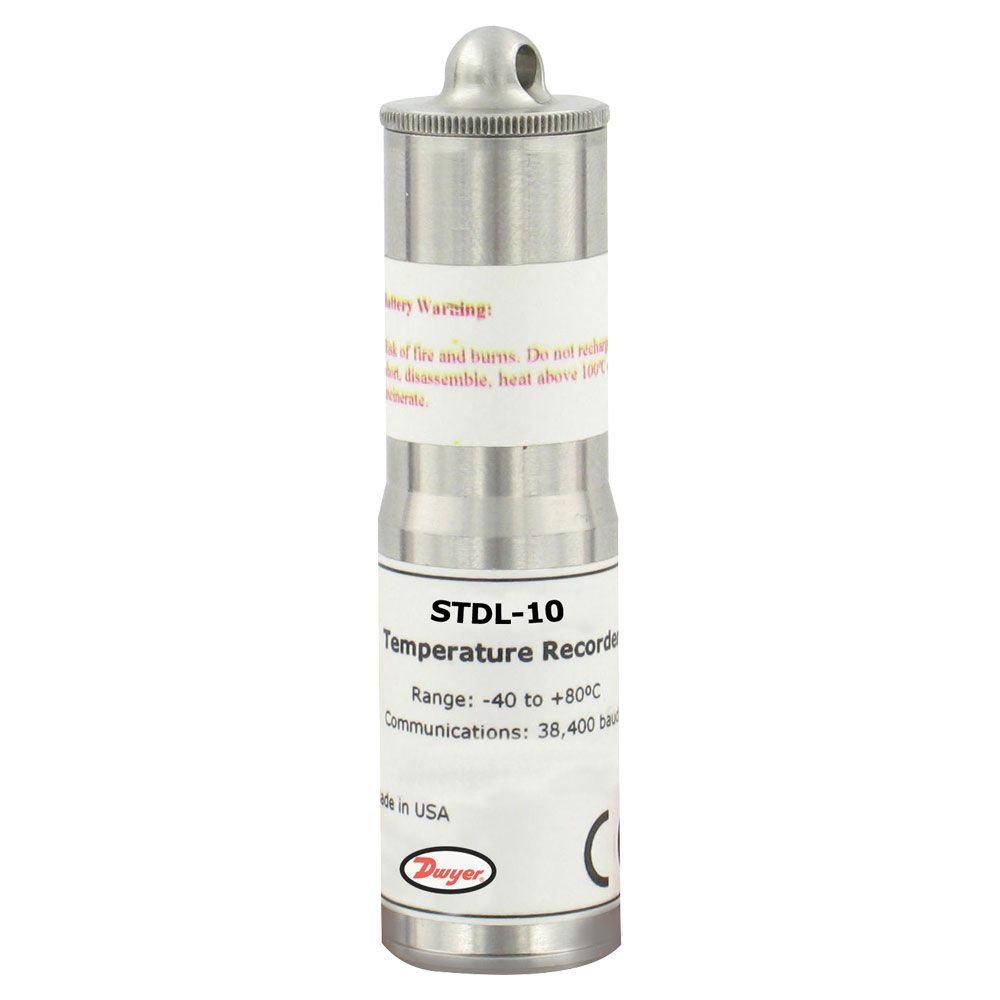

Dwyer STDL-10 | Submersible Temperature Data Logger | -40 to 80°C, 32,767 Readings
Dwyer STDL-10 is a compact submersible temperature data logger measuring -40 to 176°F (-40 to 80°C) and storing 32,767 readings. At 18 mm diameter and 66 mm tall, it signals programmed high and low alarms with green and red LEDs.
- Accuracy ±0.5°C (±0.9°F) from 0 to 50°C; 0.1°C resolution
- Food-grade 316L stainless steel housing
- Sampling rate 2 s to 12 h, user selectable via DL700 software
- Start and stop from a PC, with delayed start up to six months ahead
- USB port (interface cable required); about 1-year battery life
- Weighs 1.8 oz (51 g); CE approved
- Specifications
- Features
- Downloads
| Part Number | STDL-10 |
| Brand | Dwyer |
| Range | -40 to 176°F (-40 to 80°C) |
| Accuracy | ±0.9°F (±0.5°C) for 0 to 50°C |
| Resolution | 0.2°F (0.1°C) |
| Memory | 32,767 readings |
| Alarm | Programmable high/low (LED) |
| Housing | 316L stainless steel (food grade) |
| Size | 0.7 in dia x 2.6 in (18 x 66 mm) |
| Sampling Rate | 2 s to 12 h |
| Interface | USB (cable required) |
| Power | 3.6 V lithium, user replaceable |
| Weight | 1.8 oz (51 g) |
| Approvals | CE |
- High resolution for accurate measurement of temperature.
- It may be utilized in underwater conditions up to a particular depth (usually up to 30 feet or more) because it is fully submersible and rated IP68.
- Alarms, battery life, and logging status are all indicated visually.
- Software that is either included or accessible for data analysis, visualization, and export; it usually supports formats like TXT and CSV.
- Long battery life: Depending on usage and logging interval, the battery can last up to a year.
- Robust design to survive challenging conditions, such as immersion in water.
- Large operational temperature range to guarantee precise performance in various settings.
- Features like non-volatile memory help to guarantee data integrity and avoid loss.
