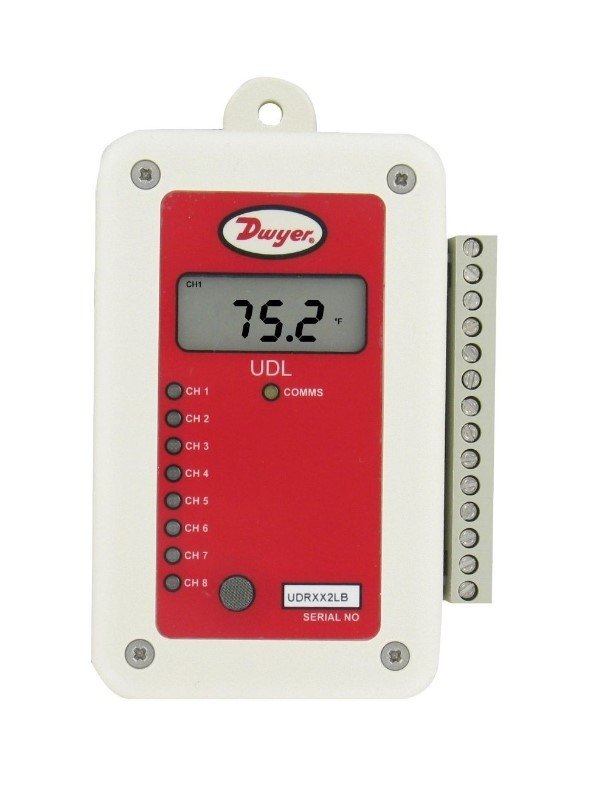

Dwyer UDL-100 | Universal Data Logger | Internal Temp, LCD
Dwyer UDL-100 is the base Series UDL data logger, with an internal temperature sensor, a digital input and an LCD display but no universal inputs. The digital input can count pulses from flowmeters or other pulse-output sensors, or trigger logging.
- Internal temperature sensor: -30 to 70°C, ±0.5°C; memory 62,000 readings
- USB connection with included cable
- Rate from 1 second to 24 hours
- Programmable alarm thresholds
- 3.6 V lithium AA, approx. six-year life
- Weight 165 g, ABS housing
- Specifications
- Features
- Downloads
| Part Number | UDL-100 |
| Brand | Dwyer |
| Universal Inputs | 0 |
| Internal Sensors | Temperature |
| Display | LCD |
| Memory | 62,000 readings |
| Internal Temperature Range | -22 to 158°F (-30 to 70°C) |
| Internal Temperature Accuracy | ±1°F (±0.5°C) |
| Sampling Rate | 1 s to 24 h |
| Interface | USB (cable included) |
| Battery Life | Approx. 6 years |
| Weight | 5.8 oz (165 g) |
- Equipped with one, two, or four universal inputs.
- Uses the PC's USB port as its interface.
- LCD and a humidity sensor are add-on features.
