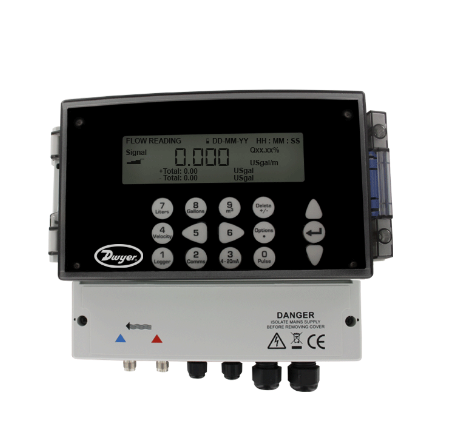

Dwyer Instruments UFB-122 | Complete Ultrasonic flowmeter set | Pipe size range 0.5 to 4.5" (13 to 115 mm) | 86 to 264 VAC power supply

Name: Dwyer Instruments UFB-122 | Complete Ultrasonic flowmeter set | Pipe size range 0.5 to 4.5" (13 to 115 mm) | 86 to 264 VAC power supply
Brand: Dwyer
SKU: UFB-122
Availability: OutOfStock

Part Number : UFB-122

The transit-time difference is used by the Model UFB-122 Ultrasonic Flowmeter Set to measure pipe flow rates non-invasively. The converter may be mounted on a surface or pipe with this permanent type. The lightweight, compact, and user-friendly design is meant for mechanical systems that employ perfectly homogenous liquids devoid of air pockets. With its robust IP65 certification, the Series UFB is shielded from dust and direct water contact. The Series UFB can produce pulses at rates of 4 to 20 mA.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-0.5 to +/-2% of flow reading of flow rate > 0.03 ft/s (0.01 m/s) and pipe OD > 3.0 in (75 mm) +/-3% of flow reading for flow rate > 0.03 ft/s (0.01 m/s) and pipe OD 0.5 to 3 in (13 to 75 mm) +/-6% of flow reading for flow rate < 0.03 ft/s (0.01 m/s)
Applicable Pipe Lining	Rubber, glass, concrete, epoxy, steel, other
Applicable Pipe Material	Carbon steel, SS, copper, UPVC/PVDF, concrete, mild steel, glass, brass
Approvals	CE
Connection	Electrical: Removeable screw-in type terminal block
Display	240 x 64 pixel graphic display, high contrast black on white with backlight Languages: English, French, German, Swedish, Italian, Spanish, Portuguese, Russian, Norwegian, and Dutch 5" W x 1.3" H (5 x 33.02 mm)
Enclosure Rating	IP65 when using TNC connector Transducers IP54
Input	TNC cable from sensors
Manufacturer	Dwyer Instruments
Material	Plastic ABS and aluminum
Maximum operating temperature	Transducer: -4 to 275°F (-20 to 135°C) Controller: -4 to 122°F (-20 to 50°C)
Mounting	Wall mounted using 3 type M4 screws
Outputs	Analog: 1 opto-isolated output: 4 to 20 mA, 0 to 16 mA or 0 to 20 mA (selectable) Error current: 0 to 26 mA (selectable) Load resistance: 620 O max Alarm: 2 opto-isolated MOSFET NO relays, 48 V at 500 mA, maximum 200 Hz Pulsed: 1 opto-isolated MOSFET relay, 48 V at 500 mA, 1 to 250 pps Pulse width: 2 to 500 ms (selectable)
Permissible Air Content	<3% by volume
Pipe Lining Thickness	<1" (< 25 mm)
Pipe Wall Thickness	0.04 to 3" (1 to 75 mm)
POWER CONSUMPTION	10.5 W
Power	86 to 264 VAC (50 to 60 Hz) or 24 VAC/VDC (1 A max)
Range	0.33 to 33 ft/s (0.1 to 10 m/s)
Repeatability	+/-0.5 % of measured value or 0.03 ft/s (0.01 m/s)
Response Time	<500 ms
Turbidity	<3 % by volume of particulate content
Type	Ultrasonic flowmeter set
Weight	>Unit not including accessories: 2.80 lb (1.26 kg) Unit including accessories: 9.92 lb (4.5 kg)

Makes use of the transit-time difference to monitor pipe flow rates precisely.
Maintains the integrity of the system by enabling measurement without entering the pipe.
Designed to be permanently installed, the converter can be put on a pipe or surface.
Because of its lightweight and small design, it is simple to handle and install.
Appropriate for use with liquids that are ideally homogenous, guaranteeing precise measurements.
Designed to provide accurate readings in liquids without any air pockets.
It is appropriate for a variety of industrial situations since it offers protection against dust and direct water contact.
Features a pulse output capability and 4 to 20 mA output range for easy data transfer and system integration.
