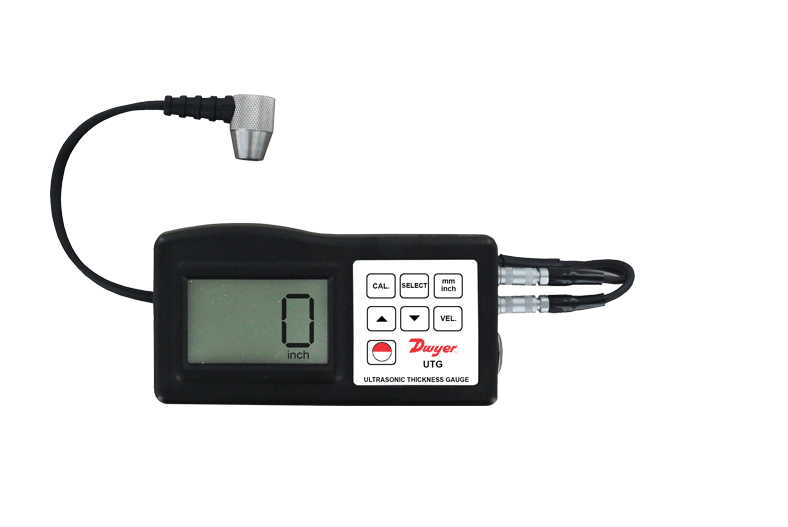

Dwyer UTG | Ultrasonic Thickness Gauge | 1.2 to 200 mm, 0.1 mm Resolution

Name: Dwyer UTG | Ultrasonic Thickness Gauge | 1.2 to 200 mm, 0.1 mm Resolution
Brand: Dwyer
SKU: UTG
Availability: InStock

Part Number : UTG

The Dwyer UTG ultrasonic thickness gauge measures material thickness from 1.2 to 200 mm (0.047 to 7.874") on parallel-surface materials. Readings appear on a 4-digit, 10 mm LCD at 0.1 mm (0.001") resolution, and the sound velocity can be set to match the material under test.

Accuracy ±0.5%
Sound velocity setting from 500 to 9000 m/s
Operates from 0 to 50°C at below 80% humidity
Powered by four AAA batteries (not included)
Weighs 164 g (5.78 oz)

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	UTG
Brand	Dwyer
Range	0.047 to 7.874" (1.2 to 200 mm)
Resolution	0.001" / 0.1 mm
Accuracy	±0.5%
Sound Velocity	500 to 9000 m/s
Display	4-digit LCD, 10 mm
Operating Temperature	32 to 122°F (0 to 50°C)
Humidity	< 80%
Power	4 x 1.5 V AAA (not included)
Approvals	CE
Weight	5.78 oz (164 g)

Non-invasive measuring of thickness.
Measures a variety of materials and has an adjustable sound velocity. It reads in inches or millimeters.
Permits the user to configure an ultrasonic transmitter by determining the pipe's wall thickness without having to cut or remove a portion of the pipe in order to measure it.
Excellent for using with any ultrasonic flow transmitter and for monitoring corrosion in closed vessels like chemical tanks and boilers.
