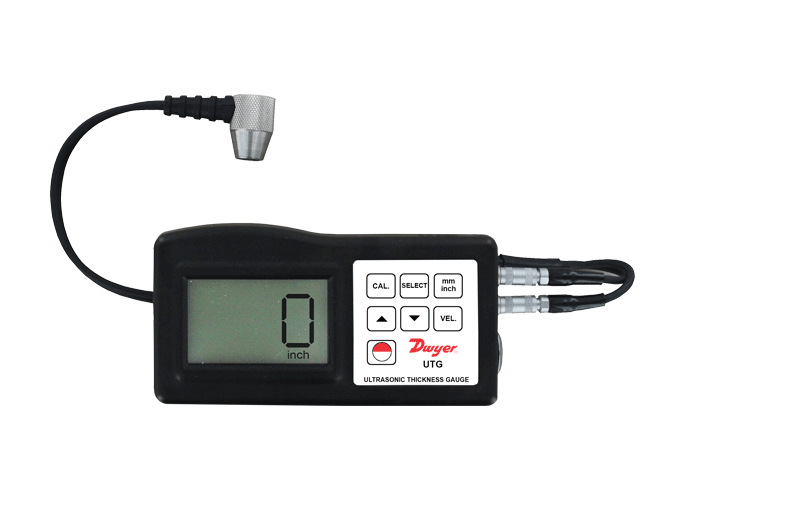

Name: Dwyer Instruments UTG | Ultrasonic Thickness Gage
Brand: Dwyer
SKU: UTG
Availability: OutOfStock

Part Number : UTG

A range of materials' thicknesses can be measured with the Model UTG Ultrasonic Thickness Gage. A range of parallel surface materials, from 0.05 to 7.9" (1.2 to 200 mm), are suitable for use with the UTG.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

	1118 to 20132 mph (500 to 9000 m/s)
Accuracy	+/-0.5%
Approvals	CE
Display	4 digits, 0.394" (10 mm) LCD
Humidity	Limit: < 80%
Maximum operating temperature	32 to 122°F (0 to 50°C)
Power	(4) 1.5 V AAA alkaline batteries, not included, user replaceable
Range	0.047 to 7.874" (1.2 to 200 mm)
Resolution	0.001" / 0.1 mm
Sound Velocity	1118 to 20132 mph (500 to 9000 m/s)
Weight	5.78 oz (164 g)

Non-invasive measuring of thickness.
Measures a variety of materials and has an adjustable sound velocity. It reads in inches or millimeters.
Permits the user to configure an ultrasonic transmitter by determining the pipe's wall thickness without having to cut or remove a portion of the pipe in order to measure it.
Excellent for using with any ultrasonic flow transmitter and for monitoring corrosion in closed vessels like chemical tanks and boilers.
